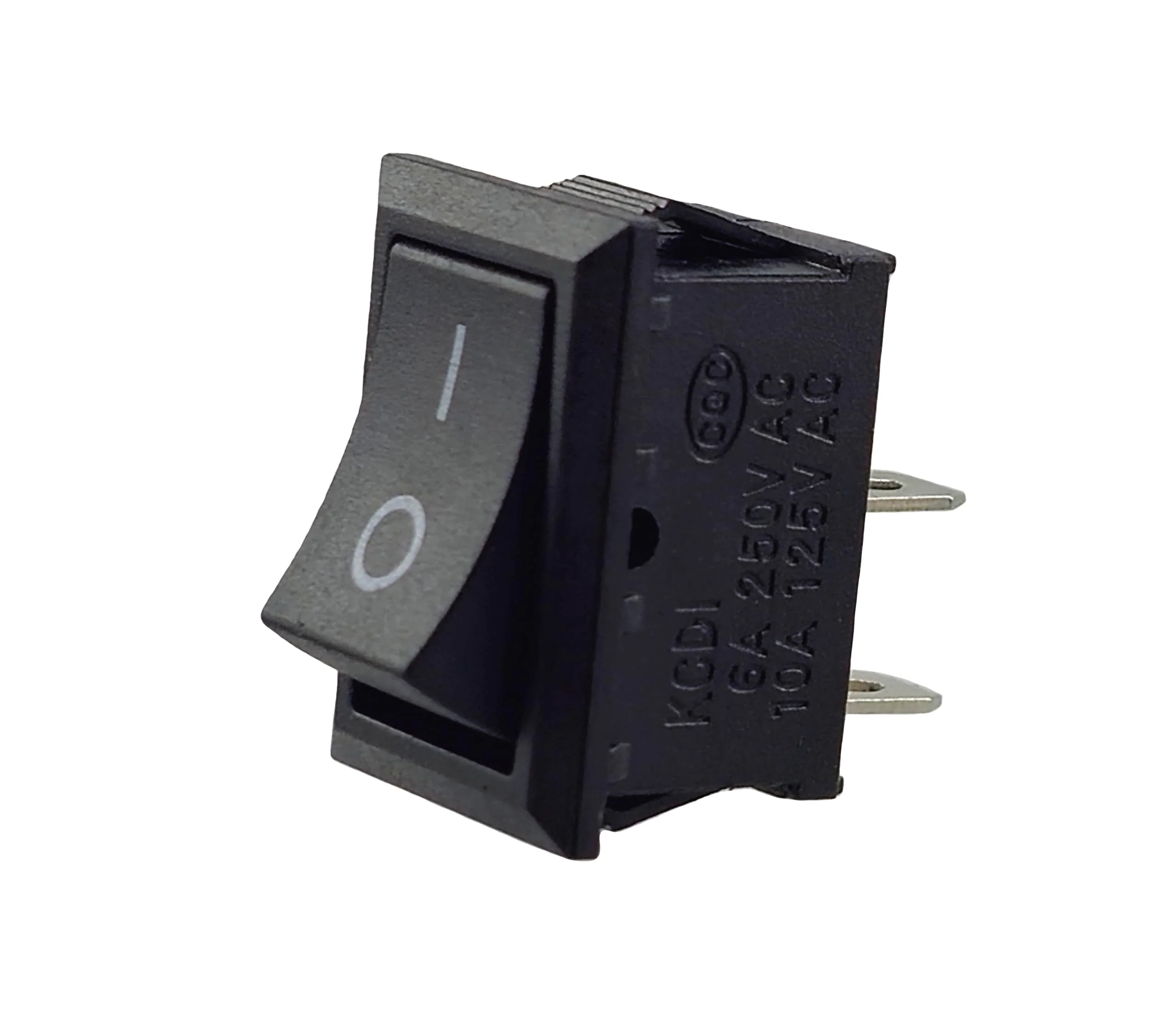

Rocker Switch, Toggle Switch, Device Switch, Mini Rocker Switch 250V 6A 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC) Black Rectangular 19 x 13 mm, 2-Pin On/Off

Rocker Switch, Toggle Switch, Device Switch, Mini Rocker Switch 250V 6A 125V 10A AC, KCD1 (6V 9V 12V 24V 125V AC/DC) Black Rectangular 19 x 13 mm, 2-Pin On/Off

This heavy duty toggle switch is of high quality and is great for the next craft project or as a replacement for old switches. Cable can be soldered or otherwise attached to the flat connector connections. The installation is done by simply pressing the switch into a cut-out (snap-in, from 12 x 18.5 mm to 13.5 x 20 mm). Technical data: 2 positions: on/off. Suitable for snap-in installation. Dimensions of the mounting opening: approx. 12x19mm Frame dimensions: approx. 21 x 15 mm. Installation depth including contacts: approx. 18 mm. With flat plug connection 4.8 mm. Rocker black unlit.

Product Features

• This heavy duty toggle switch is of high quality and is great for the next craft project or as a replacement for old switches. Cable can be soldered or otherwise attached to the flat connector connections.
• The installation is done by simply pressing the switch into a cut-out (snap-in, from 12 x 18.5 mm to 13.5 x 20 mm).
• 2 positions: on/off
• Suitable for snap-in installation
• Dimensions of the mounting opening: approx. 12x19mm
• Frame dimensions: approx. 21 x 15 mm
• Installation depth including contacts: approx. 18 mm
• With flat plug connection 4.8 mm
• Actuation type: toggle switch / rocker switch
• Contact form: SPST switch (SinglePole, Single-Throw)
