Protection board, 12V battery undervoltage switching module, undervoltage protection for automatic recovery when switched on, with LED indicator

Protection board, 12V battery undervoltage switching module, undervoltage protection for automatic recovery when switched on, with LED indicator

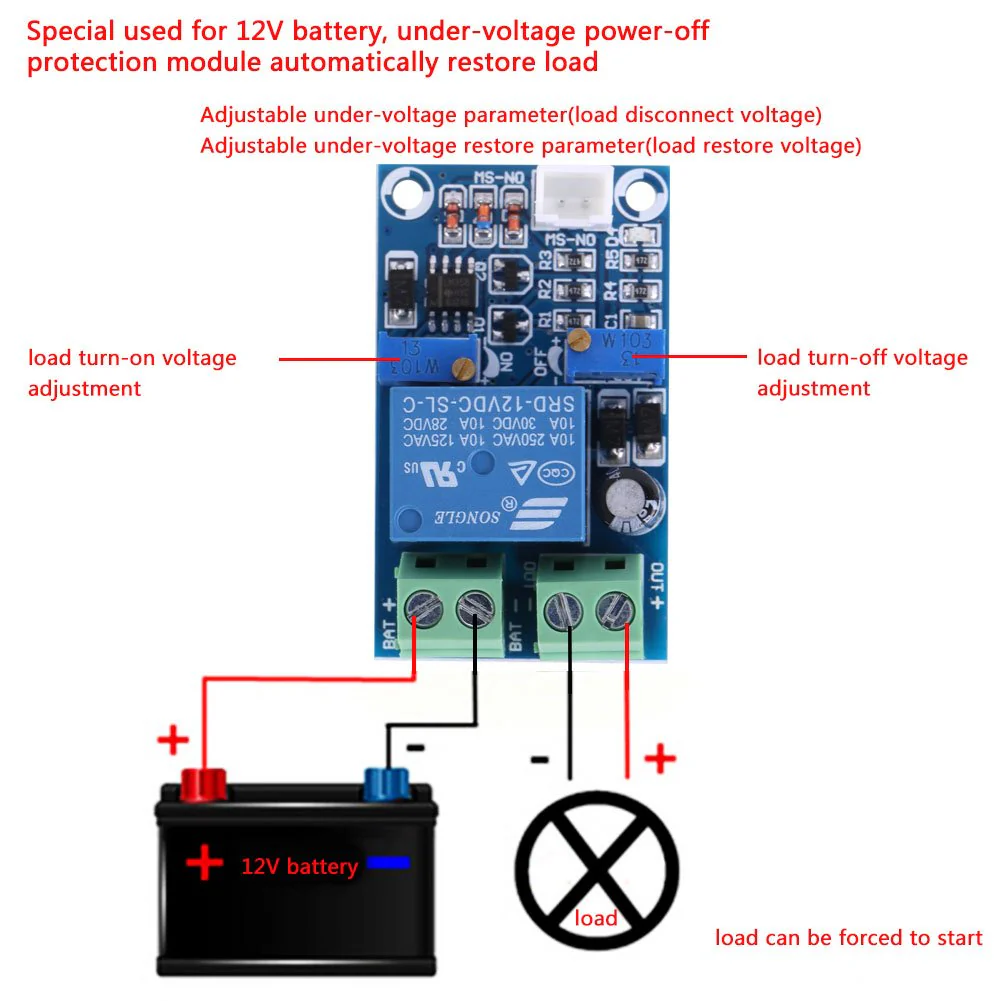

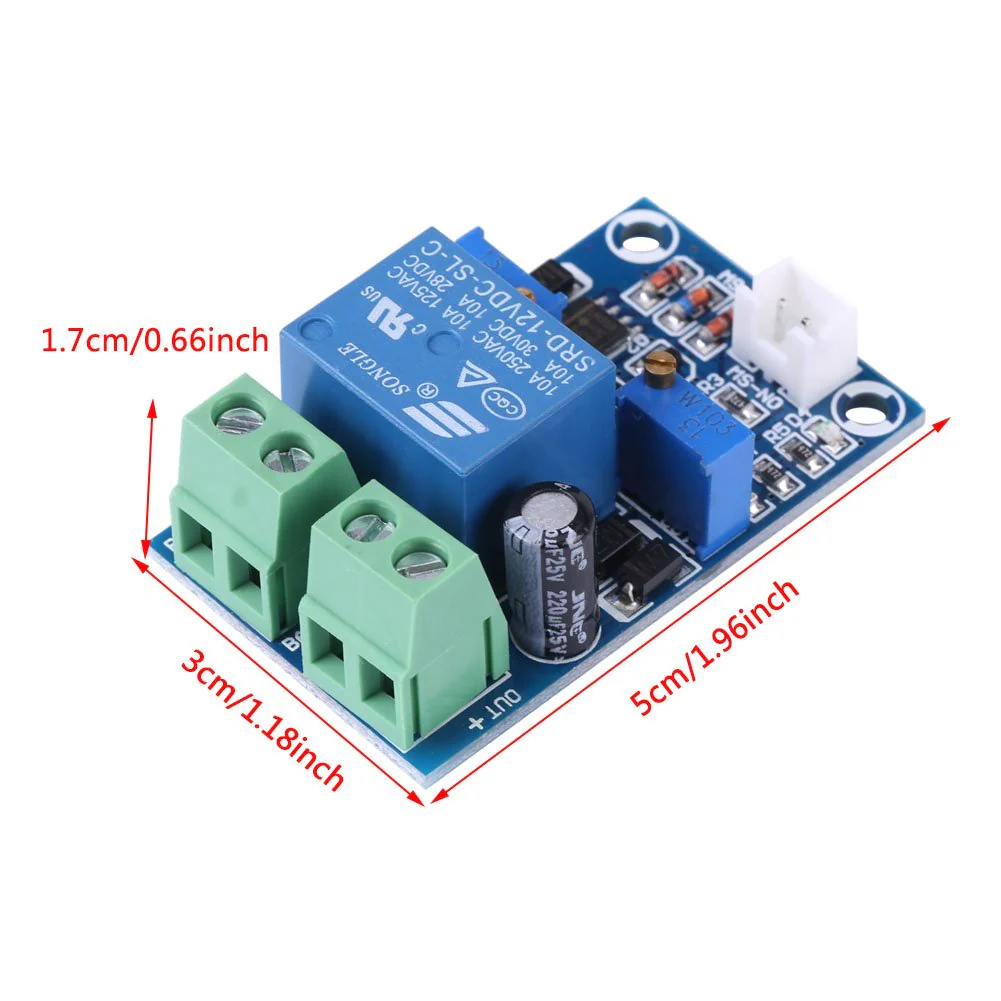

Features: This is a low voltage switching module that turns off the load when the voltage drops below a set value. When the battery voltage rises to a set value, the module automatically switches on again. Designed with an LED indicator to indicate whether the load is off or on. Both the off and the inrush voltage value can be adjusted by simply adjusting the potentiometer. This protective board helps you protect the battery from over-discharge and extend the life of the battery. Specifications: Suitable battery voltage: 12 V. Voltage error: ± 0.1 V. Load current: 10 A. Size: 5 x 3 x 1.7 cm / 2.0 x 1.2 x 0.7 inches. Weight: 21 g (approx.). Package includes: 1 x protective board.

Product Features

• This is a low voltage switching module that turns off the load when the voltage drops below a set value
• When the battery voltage rises to a set value, the module automatically switches on again
• Designed with an LED indicator to indicate if the load is off or on
• Both the off and the inrush voltage value can be adjusted by simply adjusting the potentiometer
• This protective board helps you protect the battery from over-discharge and extend the life of the battery
