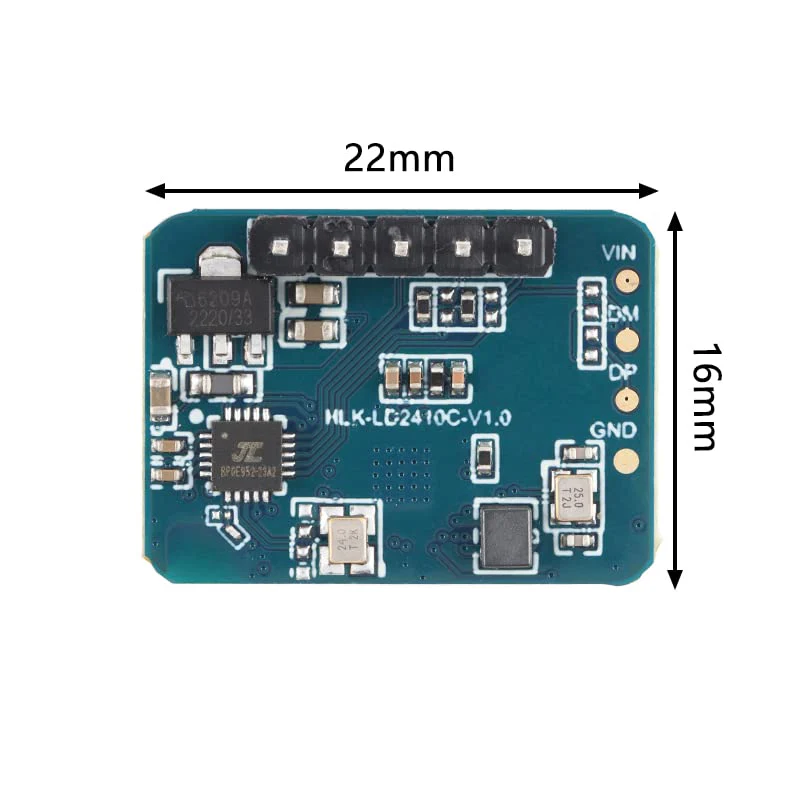

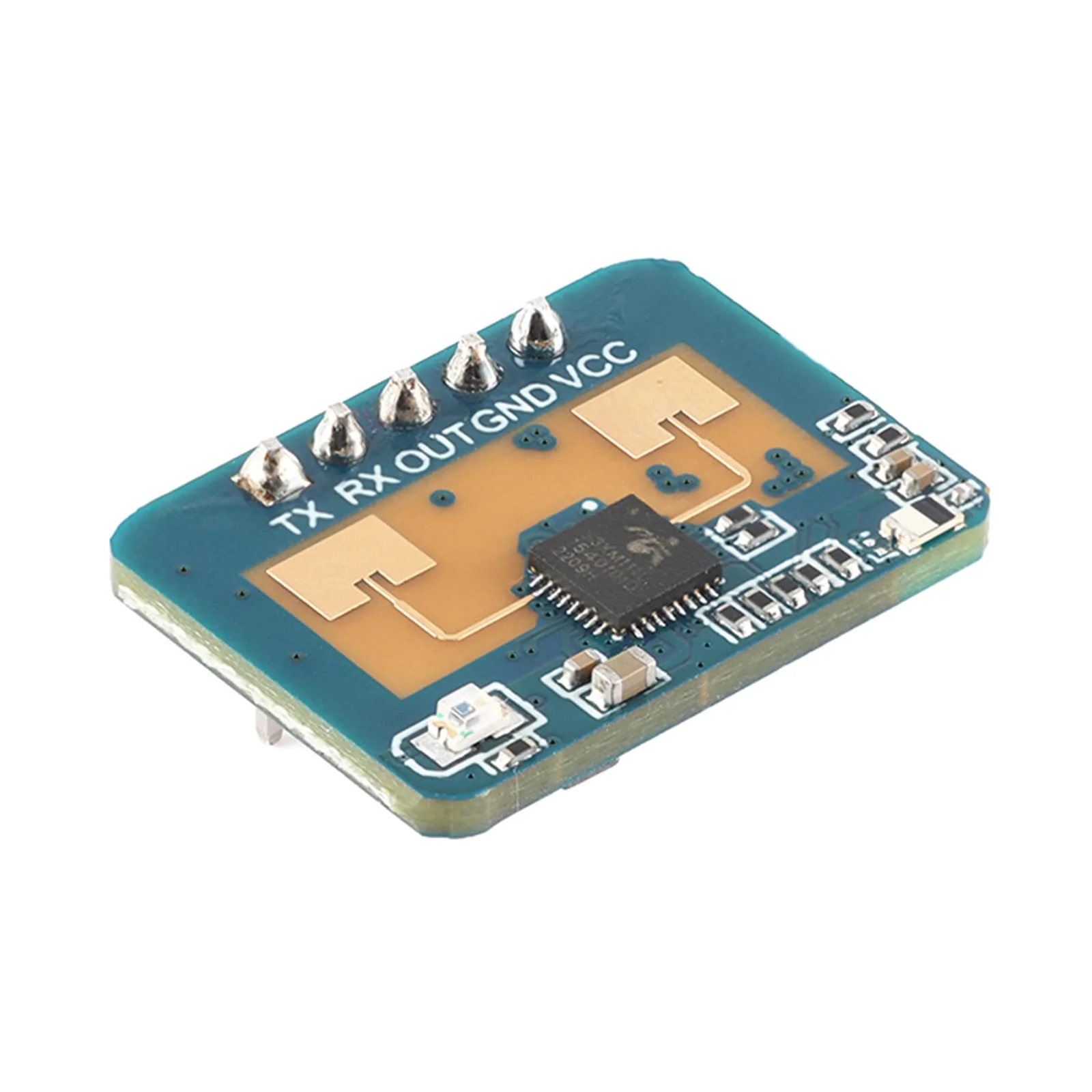

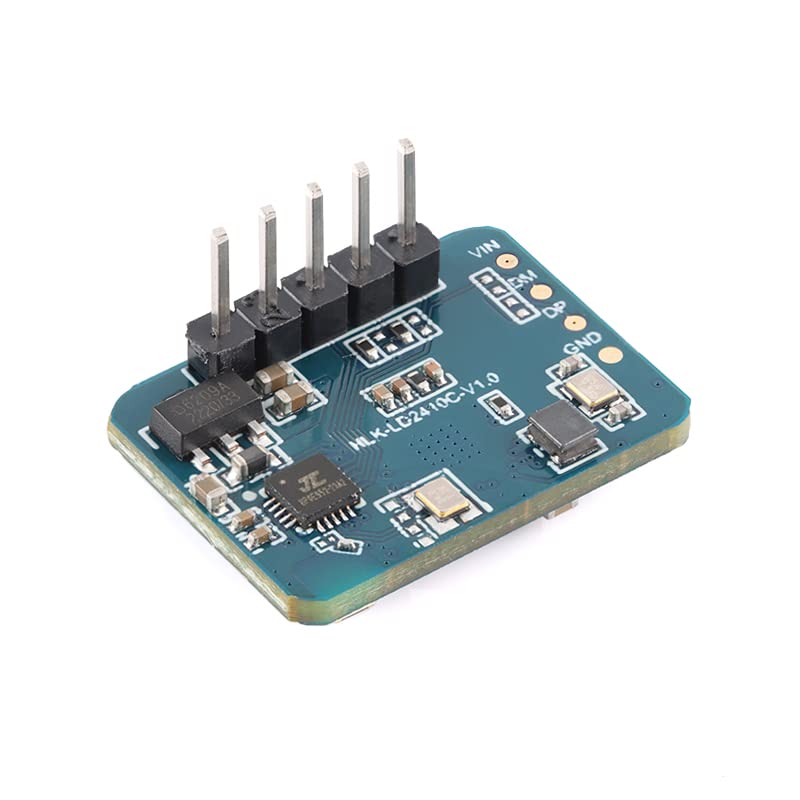

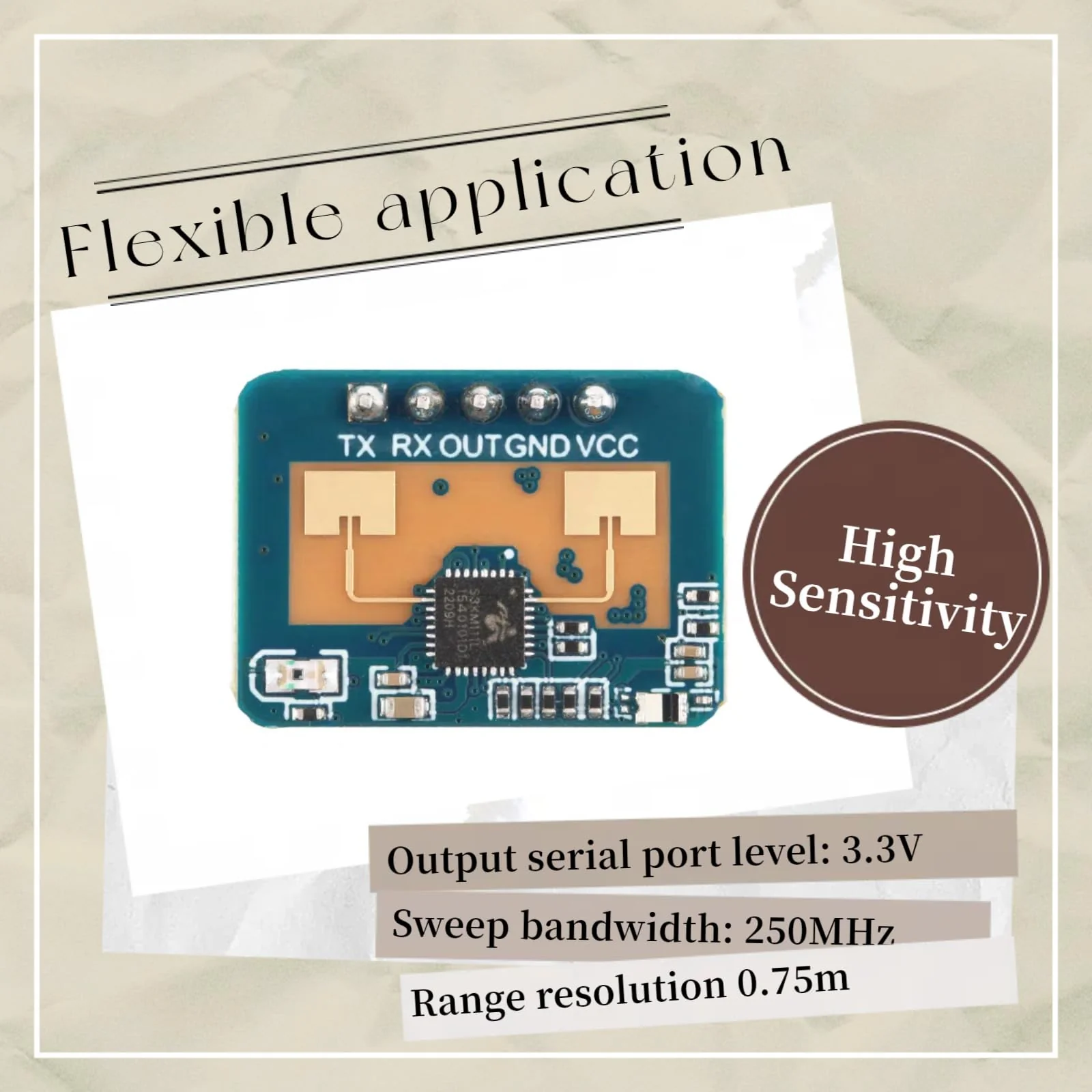

LD2410C Sensor Module HLK-LD2410 Human Presence Radar Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output

LD2410C Sensor Module HLK-LD2410 Human Presence Radar Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output

Product Features

• LD2410C is a high sensitivity 24GHz human presence state sensing module. Its working principle is to use FMCW FM continuous wave to detect human targets in the set space
• The module combines radar signal processing and accurate human body sensing algorithm to realize high sensitivity human body presence state sensing, and can calculate the target distance and other auxiliary information
• In addition to being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme
• The product can output the detection results in real time and quickly, with the maximum sensing distance of 5 meters and the distance resolution of 0.75 m
• Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products
