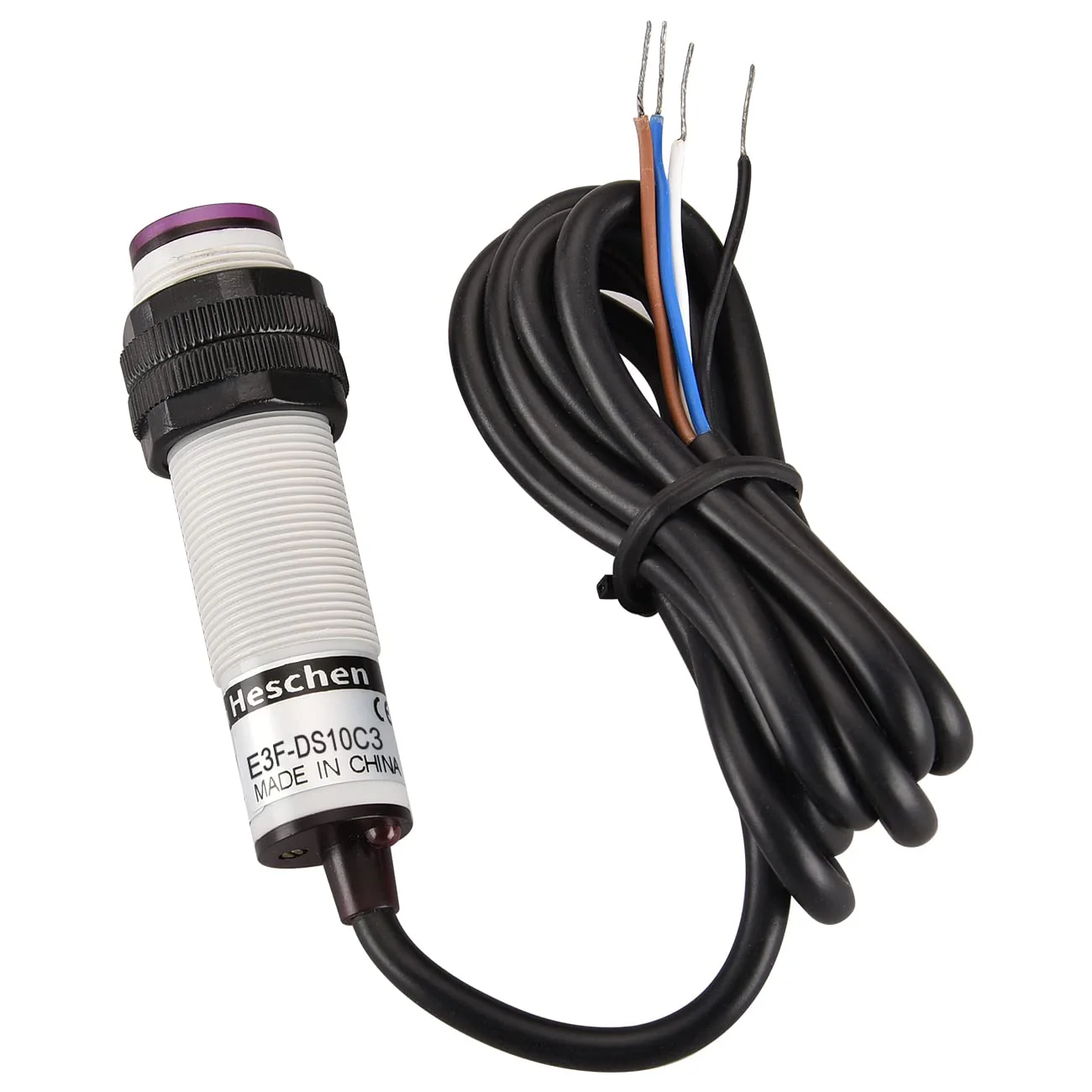

Heschen M18 Column Infrared Photoelectric Proximity Switch Diffusion Type E3F-DS10C3 Detection Distance 10cm 10-30V DC 200mA NPN NO+NC 4 Cables

Heschen M18 Column Infrared Photoelectric Proximity Switch Diffusion Type E3F-DS10C3 Detection Distance 10cm 10-30V DC 200mA NPN NO+NC 4 Cables

Connection delay: 1.5ms Light source: infrared light 660nm Supply voltage: DC 10-30V pulse (p-p) 10% below Current: 20mA Bottom Control Output: 200mA Bottom Loop protection: reverse protection, surge attenuation, load short circuit protection. Ambient temperature and humidity: during operation, storage: individually 30 ~ + 65 °C (no freezing, no drew), during operation, storage: individually 35 - 95% RH. Insulation impedance: 50 MΩ above (DC500 megameter) between charging part and housing. Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between charging part and housing. Temperature influence: temperature range: 30 ~ +65 °C, at + 23 °C, ± 15% detection distance, temperature range: 25 ~ + 60 °C, at +23 °C, ± 10% detection distance. Voltage influence: indoor ± 15% rated supply voltage range, at rated supply voltage value, within ± 10% detection distance.

Product Features

• Mounting Hole Dia:18mm/0.71";Cable Length:150cm/59
• Detection distance: 10 cm 10%, not adjustable
• Output type: NPN NO + NC; diffuse reflection type
• Current Output: 200mA; Working Voltage: 10-30V DC
• Detection terget: opaque object
