Hailege BTS7960 43A Dual H-Bridge Stepper Motor Drive Current Limit Control Semiconductor Refrigeration PWM for Smart Car Motor Drive

Hailege BTS7960 43A Dual H-Bridge Stepper Motor Drive Current Limit Control Semiconductor Refrigeration PWM for Smart Car Motor Drive

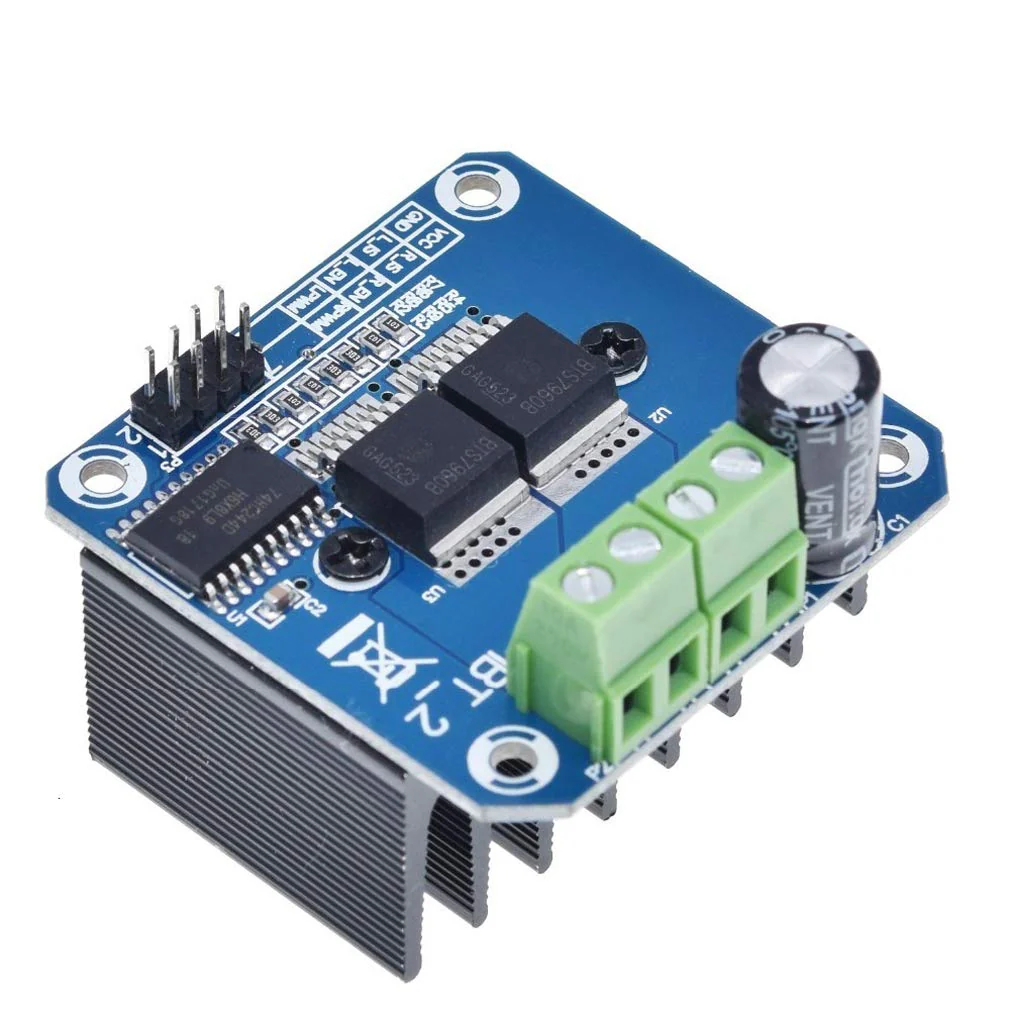

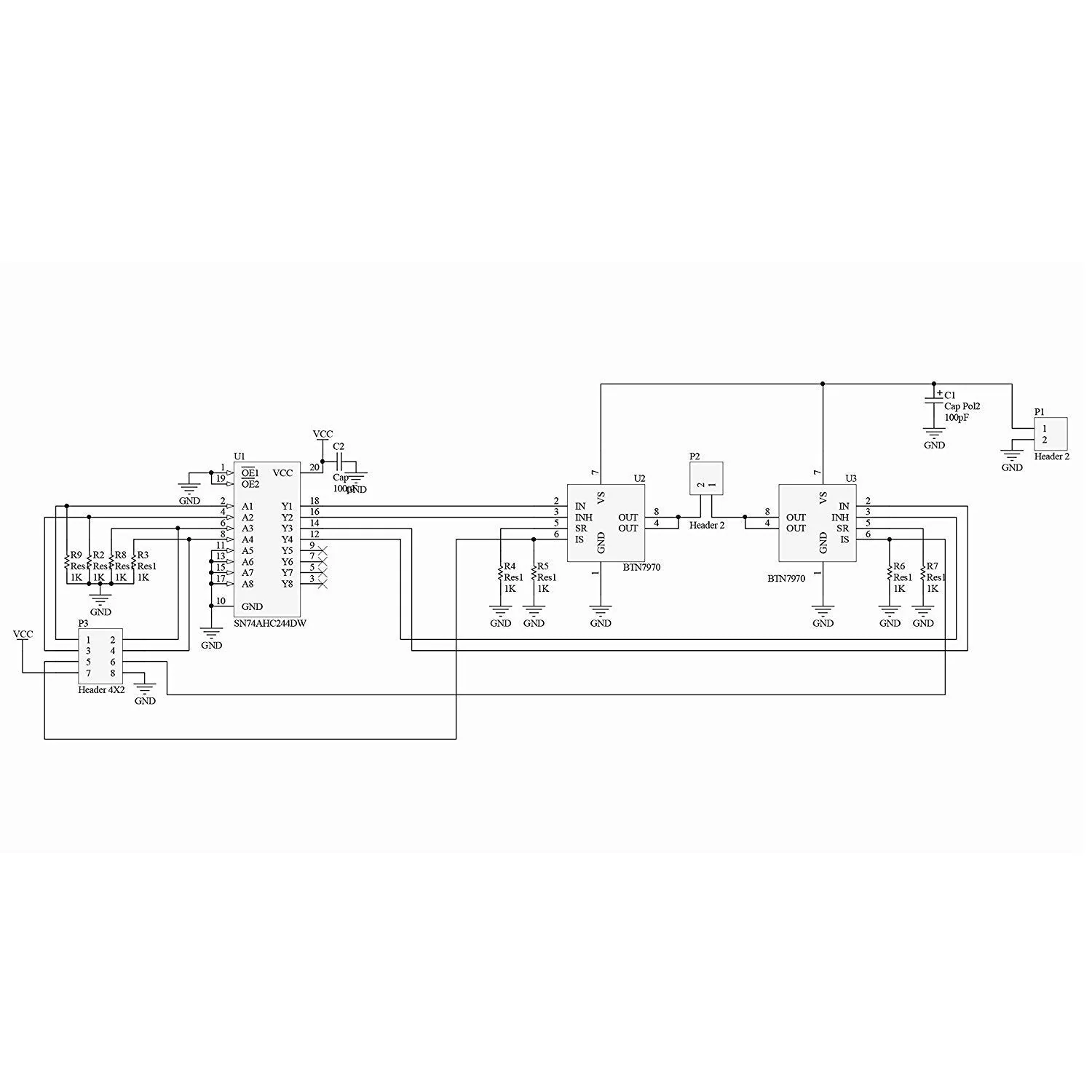

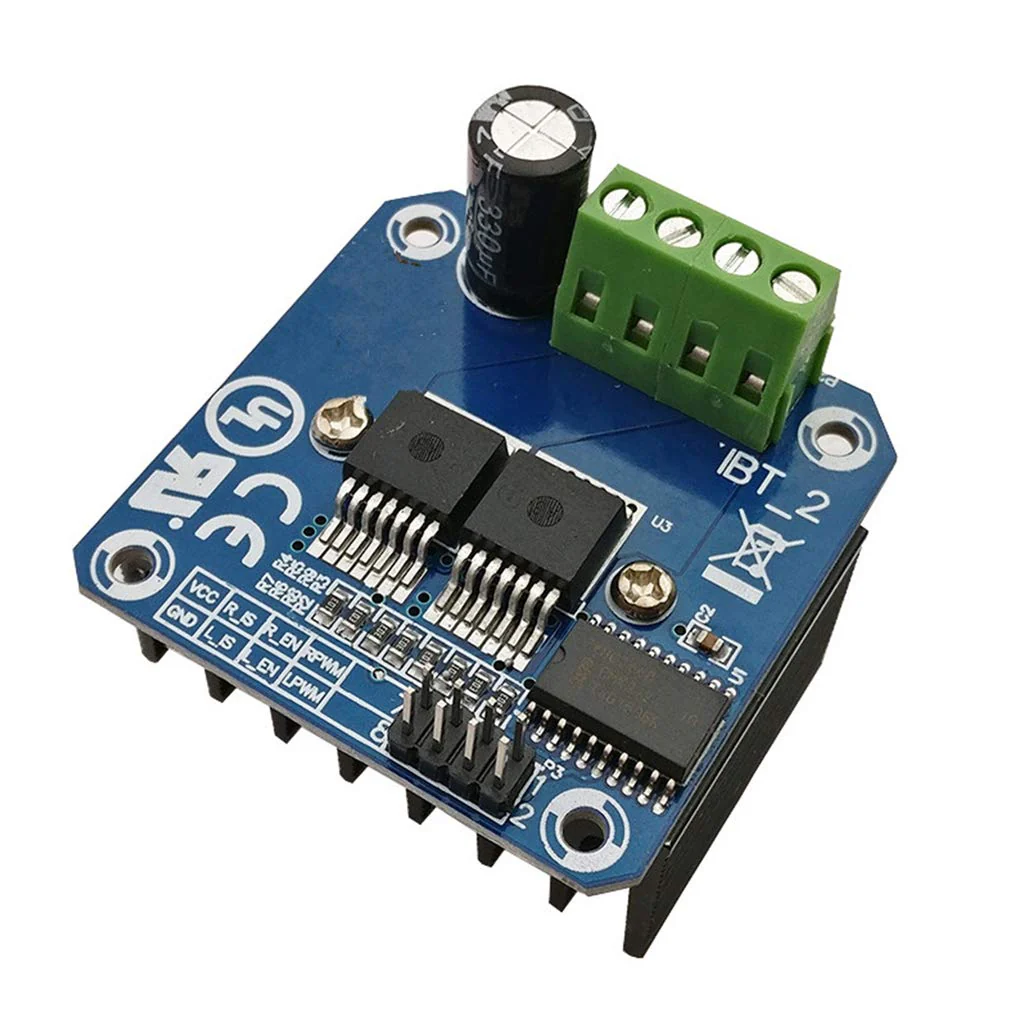

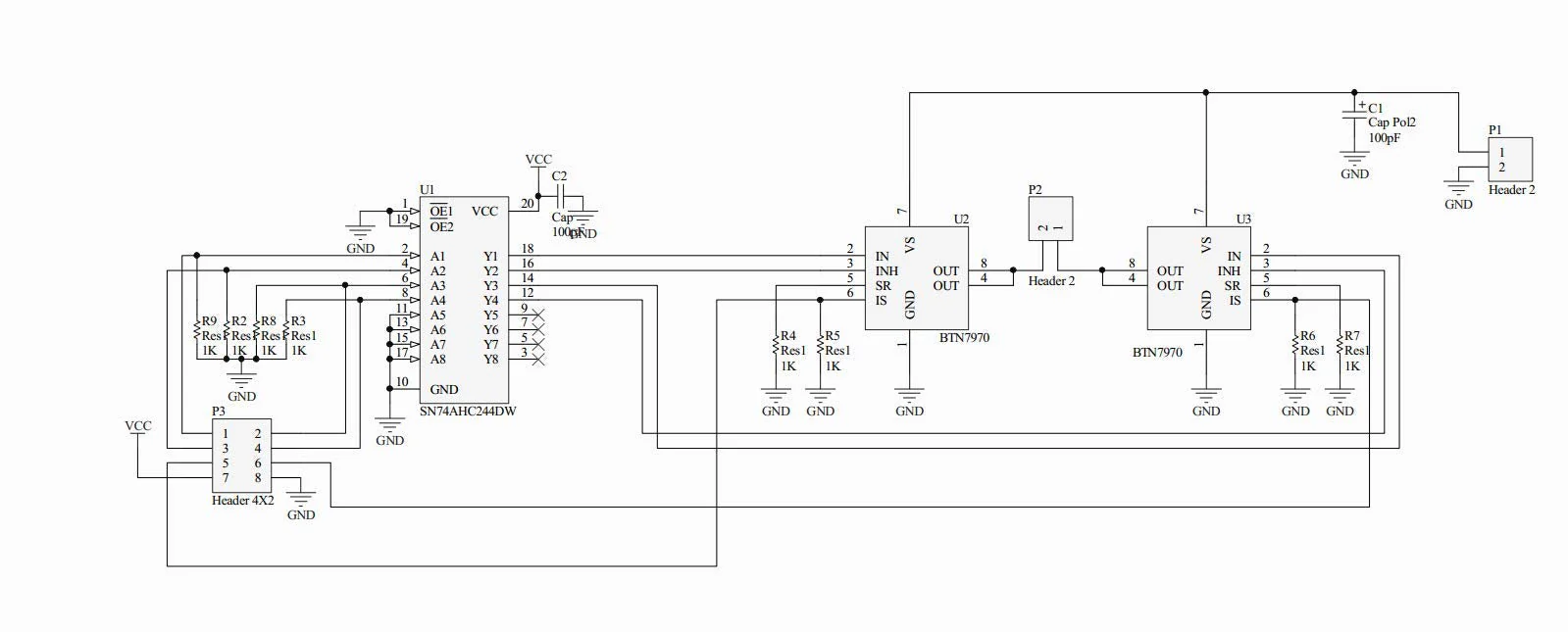

Description: This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A. Electrical performance: Model: IBT-2. Input voltage: 6V-27V. Maximum current: 43 A. Input level: 3.3-5V. Control method: PWM or level. Duty cycle: 0-100%. Input port: RPWM: forward level or PWM signal input, active high. LPWM: reverse level or PWM signal input, active high. 3. R_EN: forward drive enable input, high-level enable, low level off. 4.L_EN: Reverse drive enable input, high-level enable, low level off. 5. R_IS: forward drive current alarm output. 6. L_IS: reverse drive current alarm output. 7. VCC: +5 V power output, 5 V power supply connection with the microcontroller. 8. GND: signal common low end. Package includes: 1 x BTS7960 43A high power motor driver module/smart car driver module

Product Features

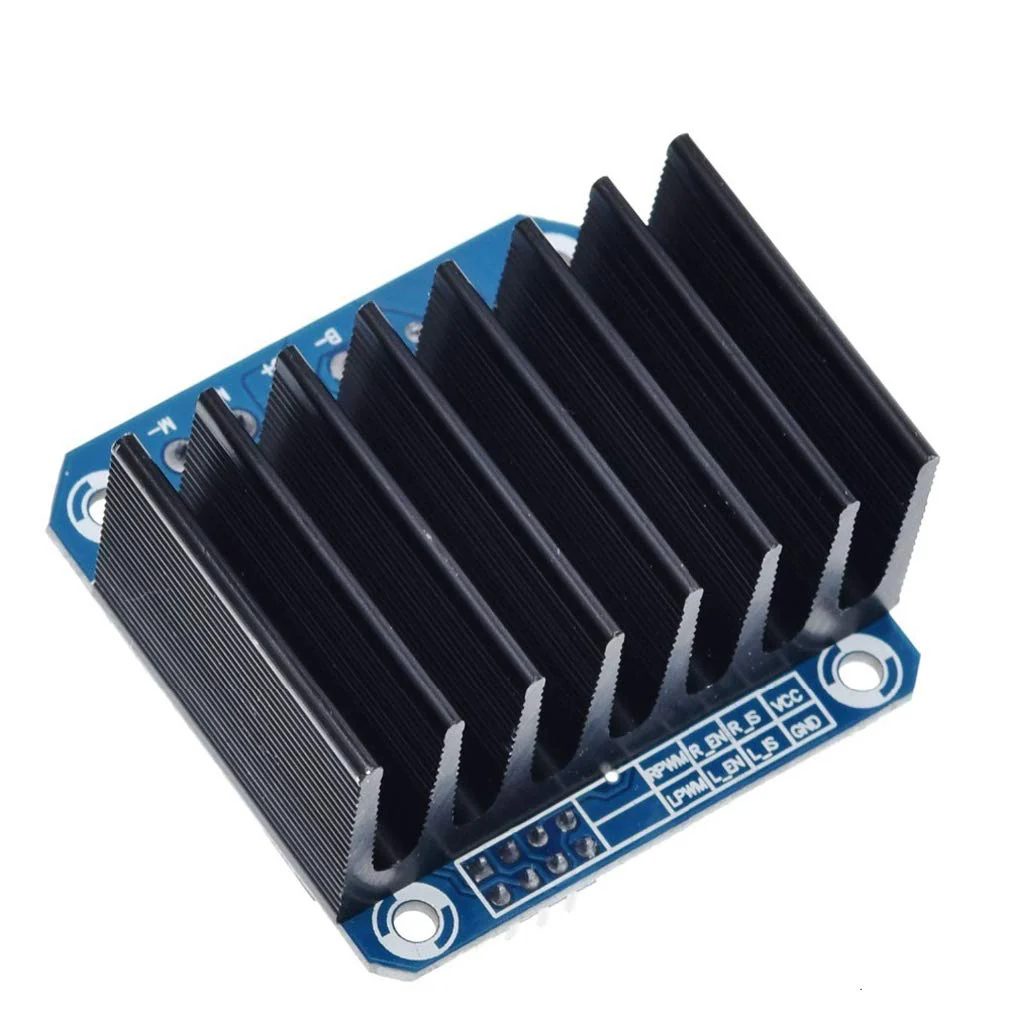

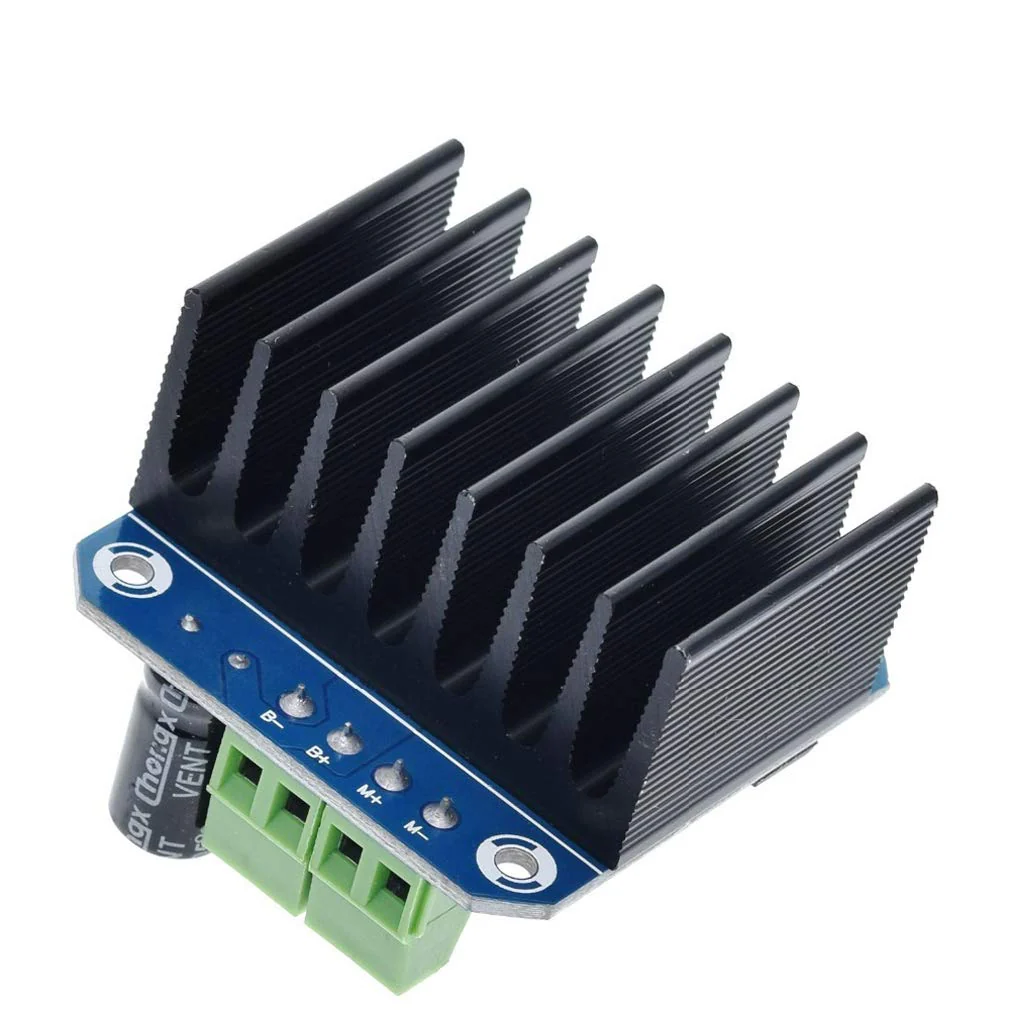

• 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board. Voltage indication of motor driver output end; can solder heat sink.
• BTS7960 43A Dual H-Bridge Stepper Motor Drive Current Limit Control Semiconductor Refrigeration

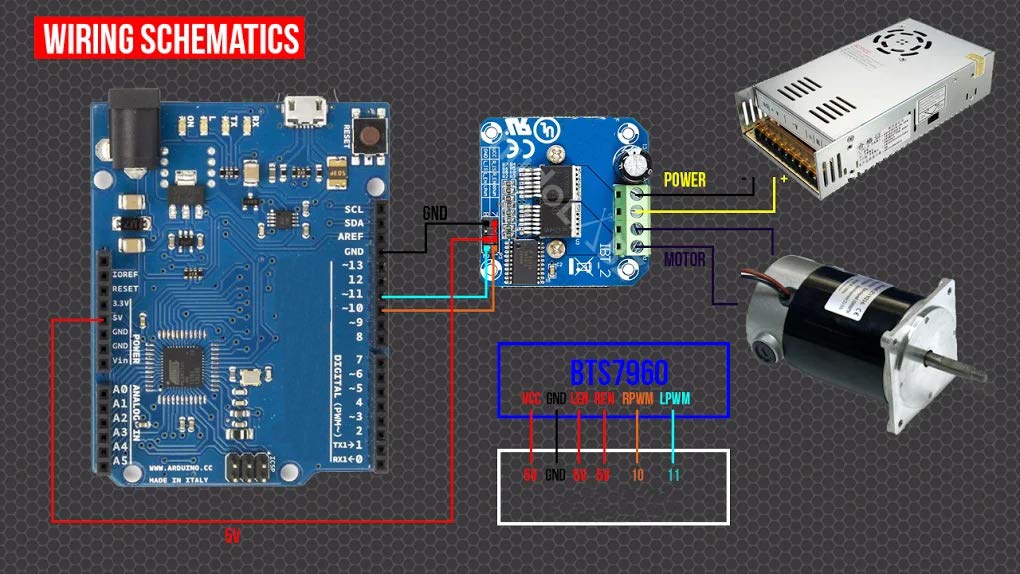

• Just need four lines from MCU to driver module (GND. 5 V. PWM1 PWM2); isolation chip 5 V power supply (can share with MCU 5 V).
• Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; the supply voltage 5.5V to 27V.
