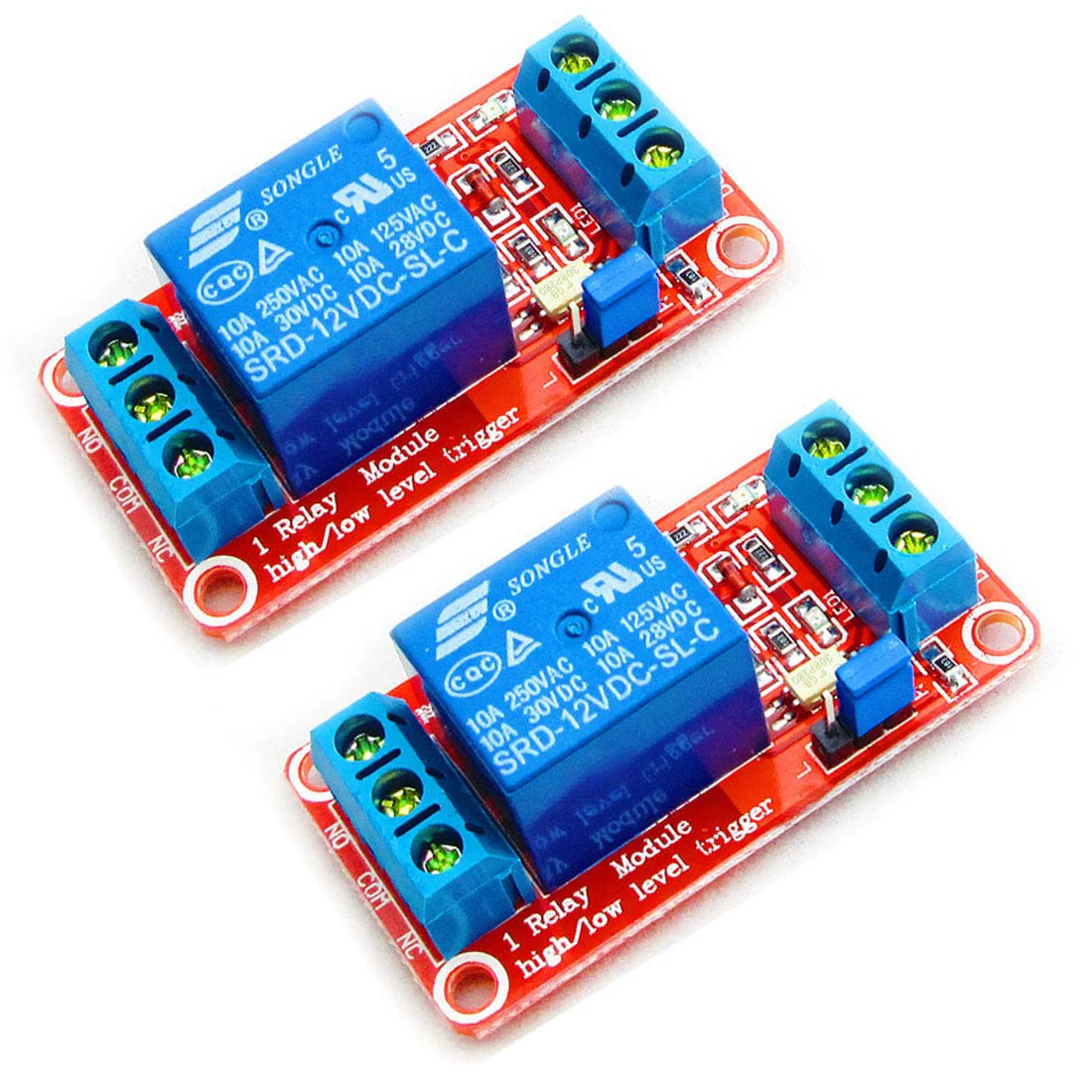

Hailege 2pcs 12V 1 Channel Relay Module Relay Switch with Optocoupler Isolation Support High or Low Level Trigger

Hailege 2pcs 12V 1 Channel Relay Module Relay Switch with Optocoupler Isolation Support High or Low Level Trigger

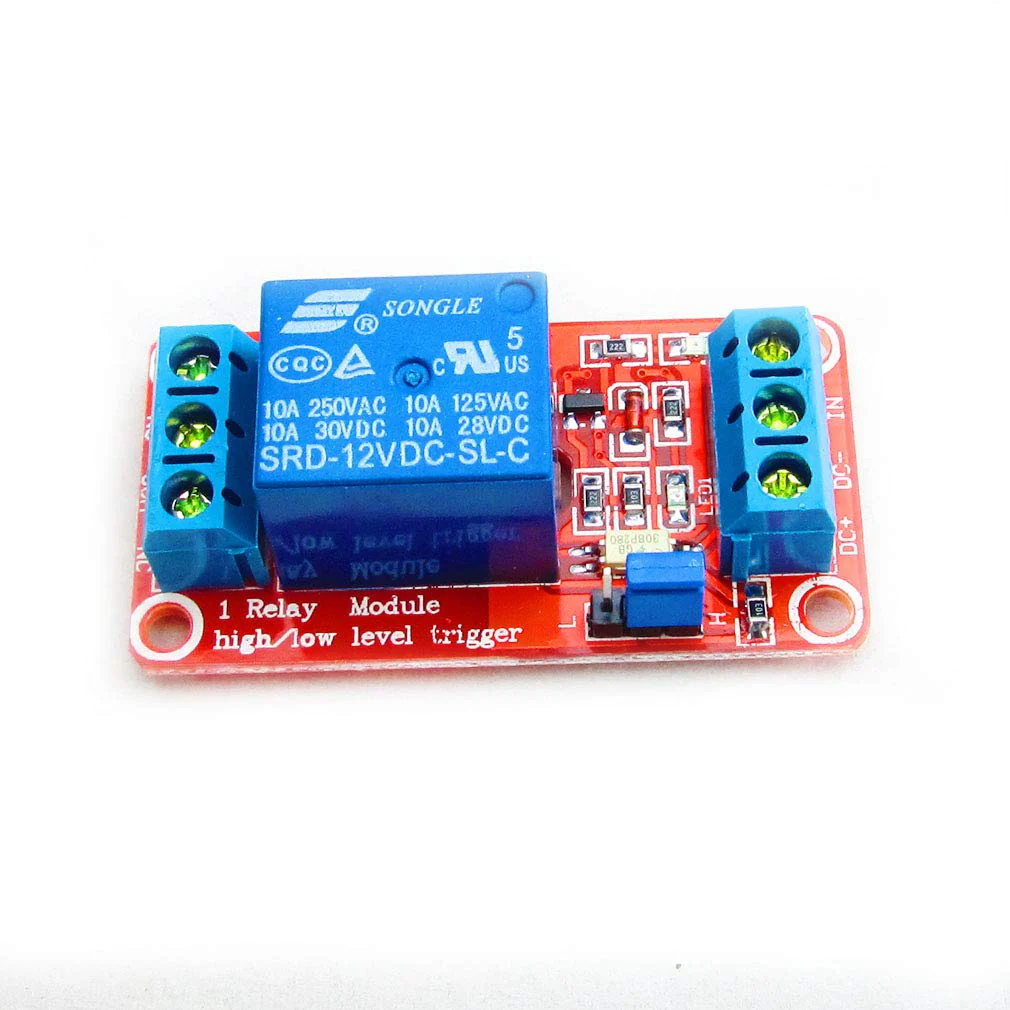

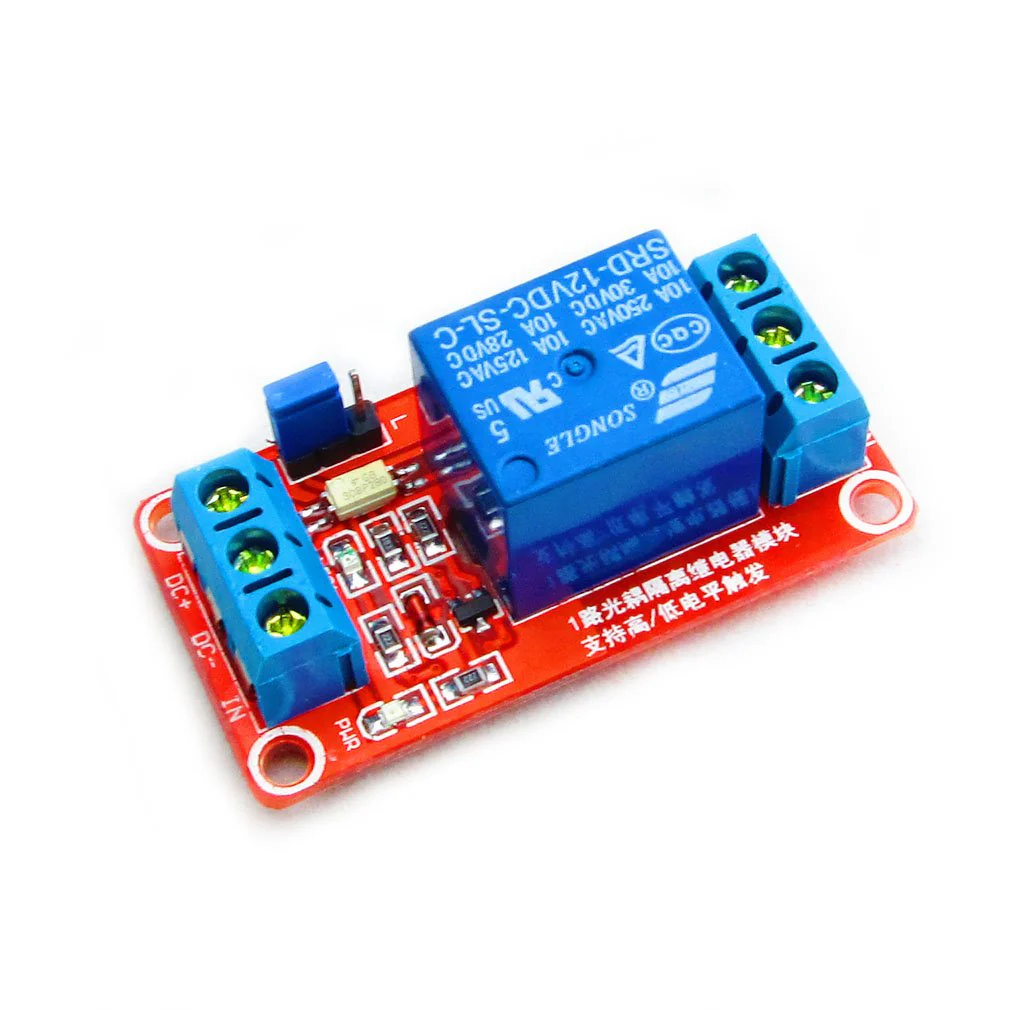

Description: Module Size: 50mm x 26mm x 18.5mm (L x W x H) With fixed bolt holes, holes 3.1 mm, spacing 44.5 mm x 20.5 mm. Power Indicator (Green), Relay Status Indicator (Red) Interface: Input: VCC: relay power supply + GND: Relay Power Supply - IN: Signal trigger input (high or low level signal, select via jumper). Output: NO: Relay normal open. COM: Relay Common Pin NC: Relay closed normally. Package includes: 2 x 12V 1 channel relay module with optocoupler insulation

Product Features

• Use of optocoupler chip insulation, strong drive capacity, stable performance; tripping current 5mA
• The module uses a real relay of high quality, normally open interface. Maximum load: AC 250 V / 10 A, DC 30 V / 10 A
• The module can be adjusted by jumper, high or low trigger
• The interface design of human nature, all interfaces are available via a direct connection of connection cables, very practical
• We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
