Greluma L298N Motor Drive Controller Board Module Double H Bridge DC Stepper for Arduino Pack of 4

Greluma L298N Motor Drive Controller Board Module Double H Bridge DC Stepper for Arduino Pack of 4

Product features: Chip: L298N Logic Voltage: 5V Logic Current: 0mA-36mA Storage temperature: -25°C to +130°C. Operating mode: H-bridge driver (double) Working Voltage: 5V-35V Drive current: 2A (max. single bridge). Maximum power: 20W (T = 75°C). Dimensions: 43 x 43 x 27 mm. Note: This module has built-in 5V power supply, if the control voltage is 7V-35V, this power supply is suitable for power supply. Do not enter voltage to the power interface + 5V, but a 5V output is available for external use. When ENA IN1 IN2 is enabled, OUT1 controls OUT2. When ENB activated IN3 IN4 control OUT3 OUT4 Product Name: ll298n, l298n arduino, l298n motor driver, l298n driver, bridge l298n h

Product Features

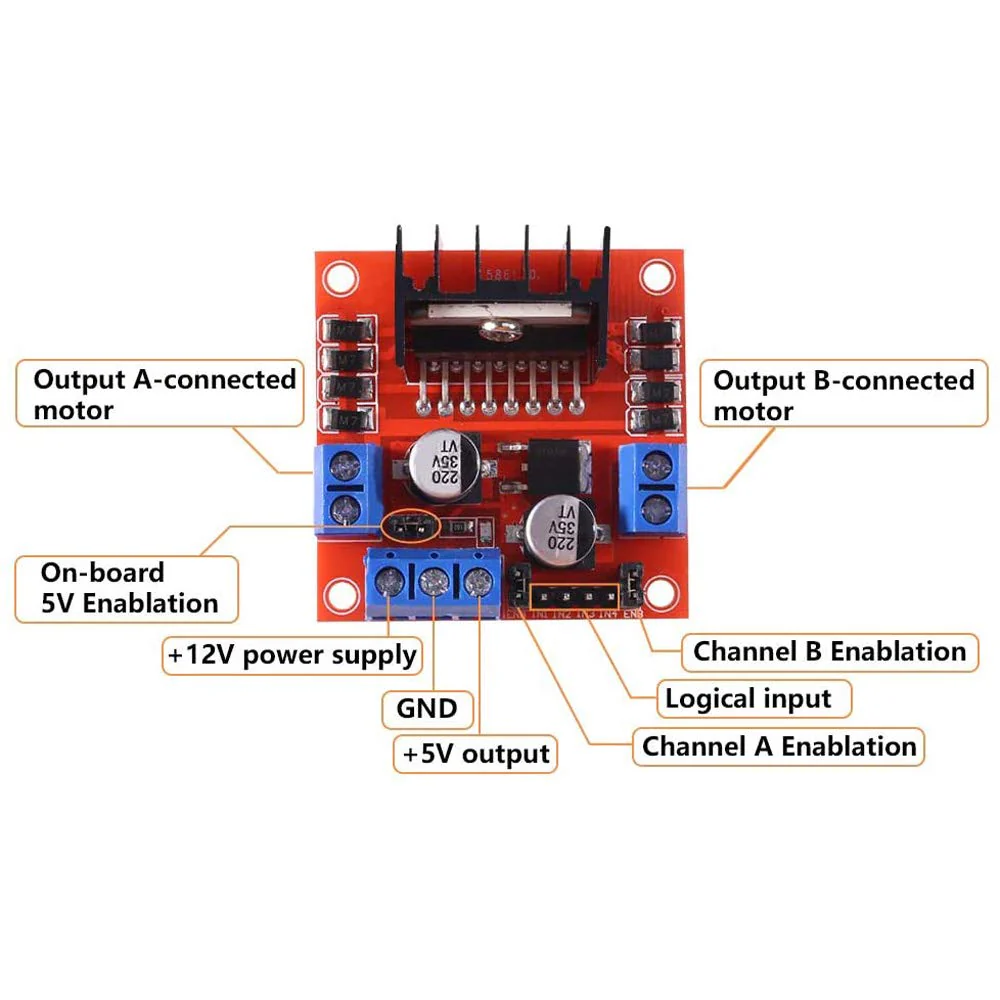

• The signal is shown in the picture

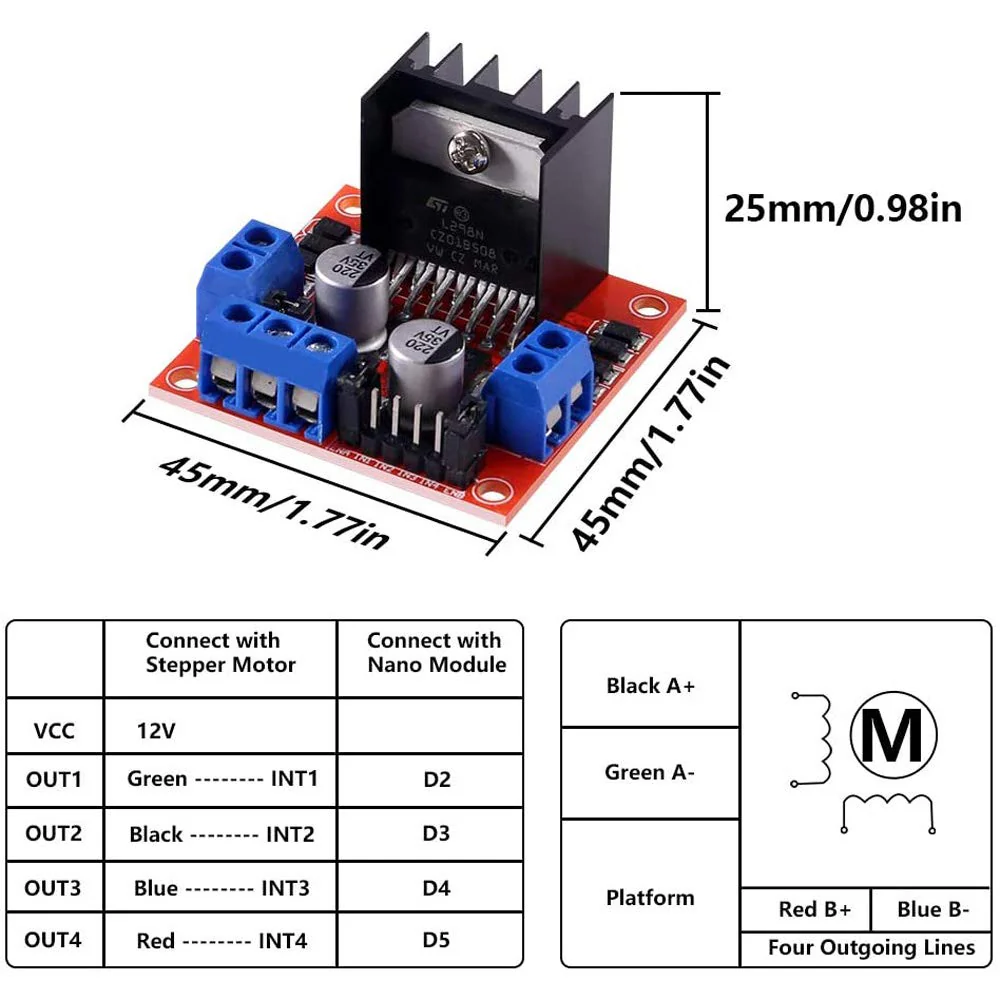

• The connection method is shown in the following figure after ENA ENB has been activated
• Drive a DC motor. As the module is powered by a double H bridge, it can drive two motors at the same time
• Enter the following driving time from IN1-IN4, then the speed and direction of the stepper motor can be controlled

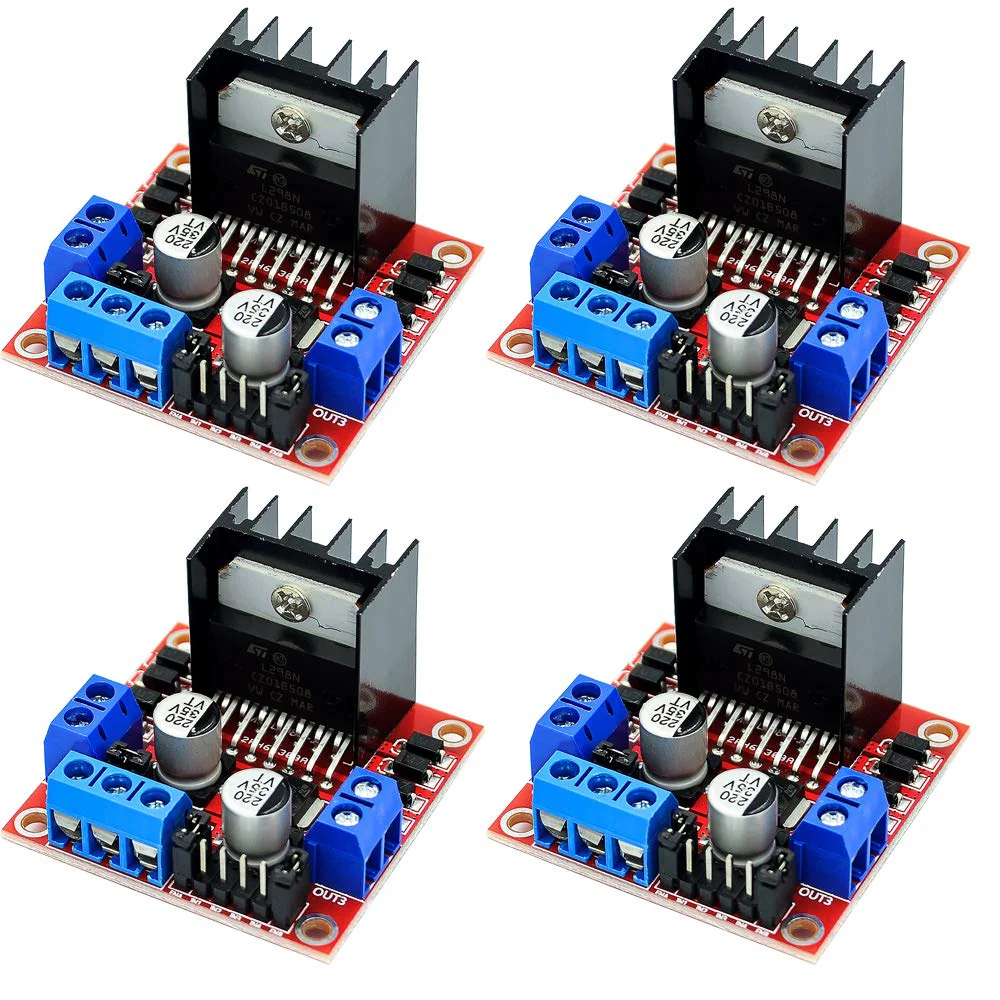

• Package includes: 4 pieces L298N motor driver controller board modules
