Freenove Breakout Board for ESP32 / ESP32-S3 WROVER WROOM, Terminal Block Shield HAT with Pin Header, 5V 3.3V Power Outputs, GPIO Status LED

Freenove Breakout Board for ESP32 / ESP32-S3 WROVER WROOM, Terminal Block Shield HAT with Pin Header, 5V 3.3V Power Outputs, GPIO Status LED

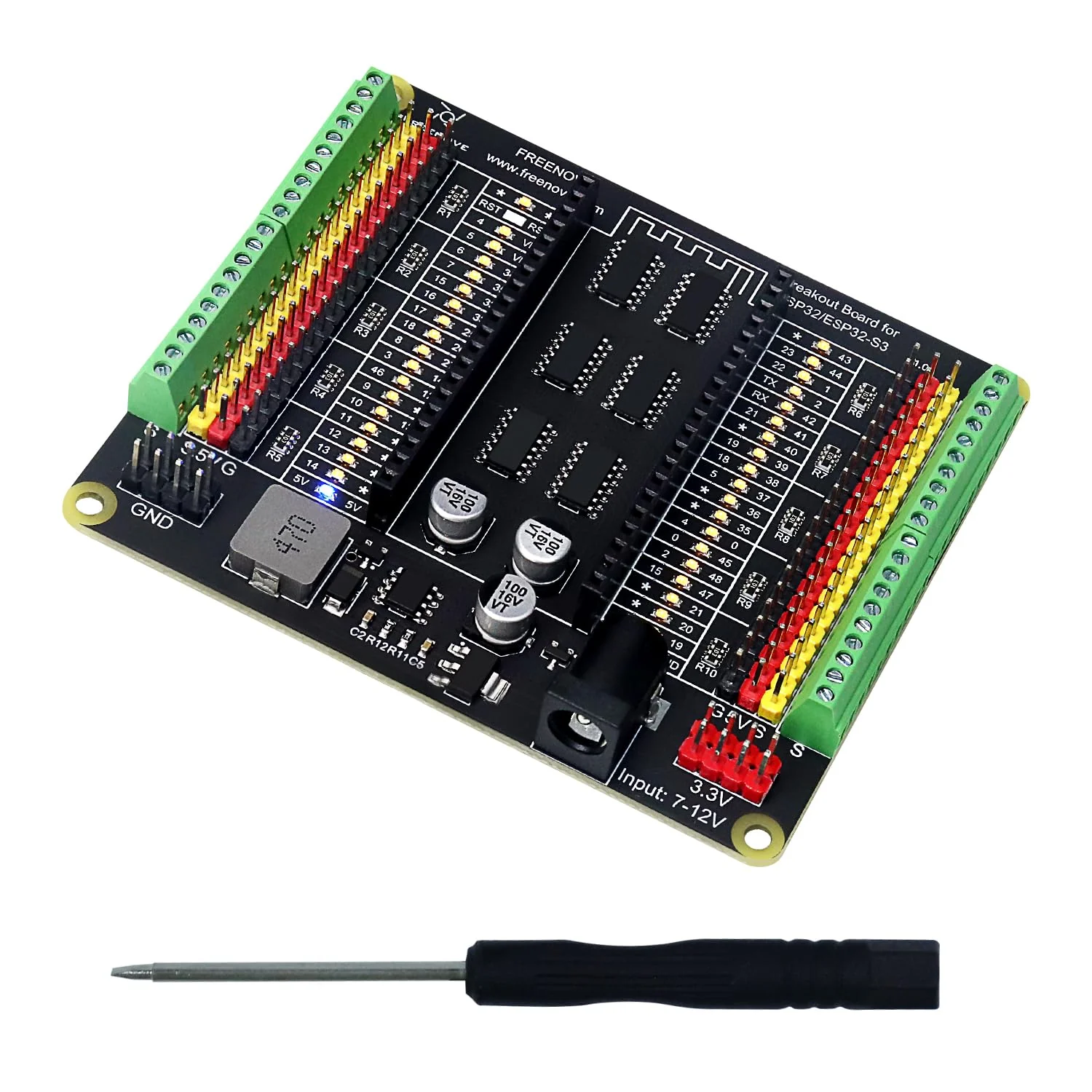

Important Notes: This product does NOT include ESP32 / ESP32-S3 board. Overview: This breakout board can help you wire and know the status of the GPIO. Just plug Freenove ESP32 / ESP32-S3 board into this board to complete the installation. We provide free technical support to help you with any questions and problems. Compatible Models: Freenove ESP32-WROVER Board (FNK0060) Freenove ESP32-WROOM Board (FNK0090) Freenove ESP32-S3-WROOM Board (FNK0085) Freenove ESP32-S3-WROOM Board Lite (FNK0099) Note: Not compatible with boards from other brands due to different pinout. Tutorial: Comes with tutorial to show how to use. (Download needed, no paper tutorial.) The download link can be found on the product box. Package Includes: 1 x Breakout board 1 x Slotted screwdriver

Product Features

• Compatible Models: Freenove ESP32 / ESP32-S3 series (Note: Not compatible with boards from other brands due to different pinout)
• GPIO Status LED: LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level
• Independent LED: The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected
• Power Circuit: Provide multiple 5V and 3.3V power outputs (5V output up to 3A with external power supply)
• Terminal Block and Header: Connect to all pins of ESP32 / ESP32-S3, 2.54 mm (0.1 inch) pitch
