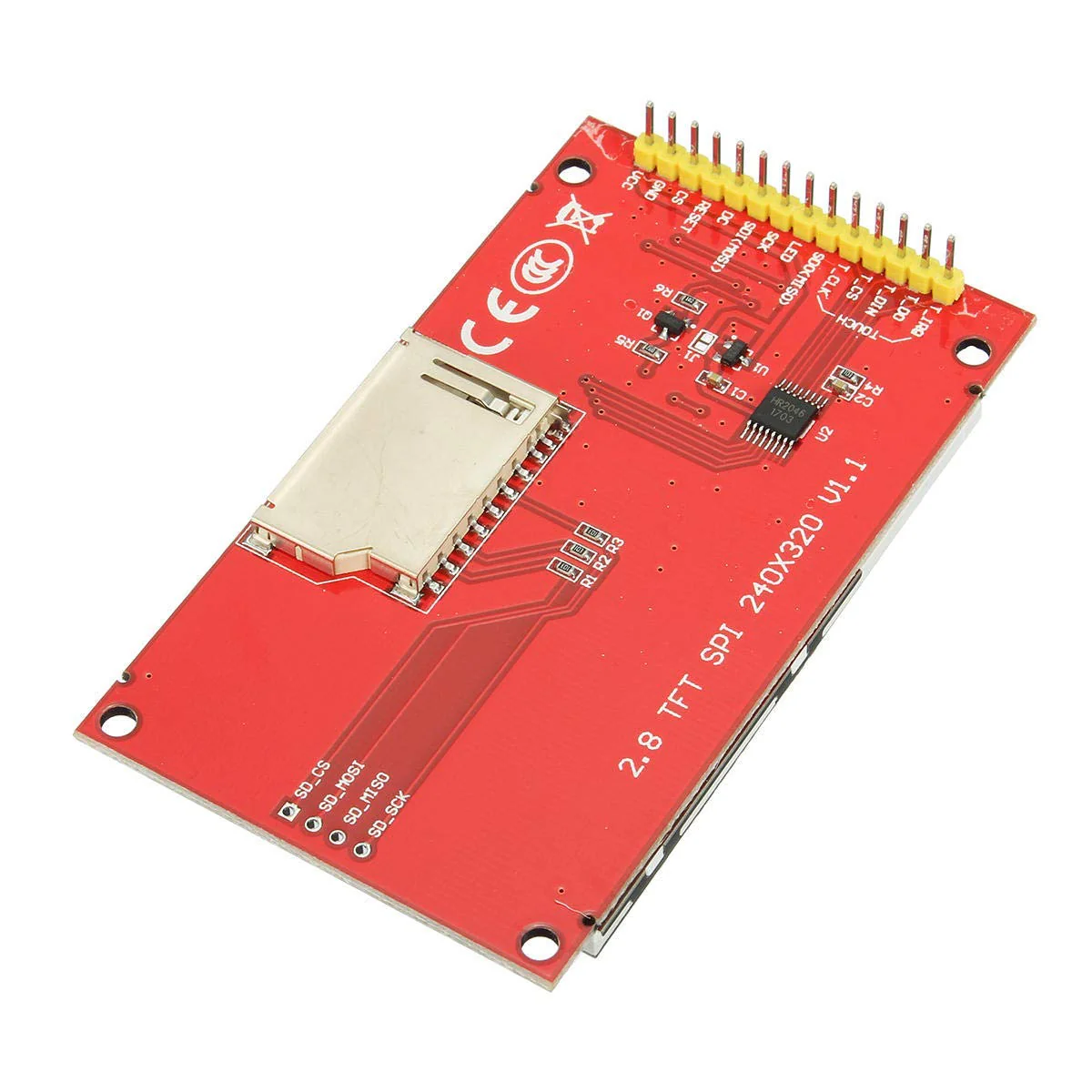

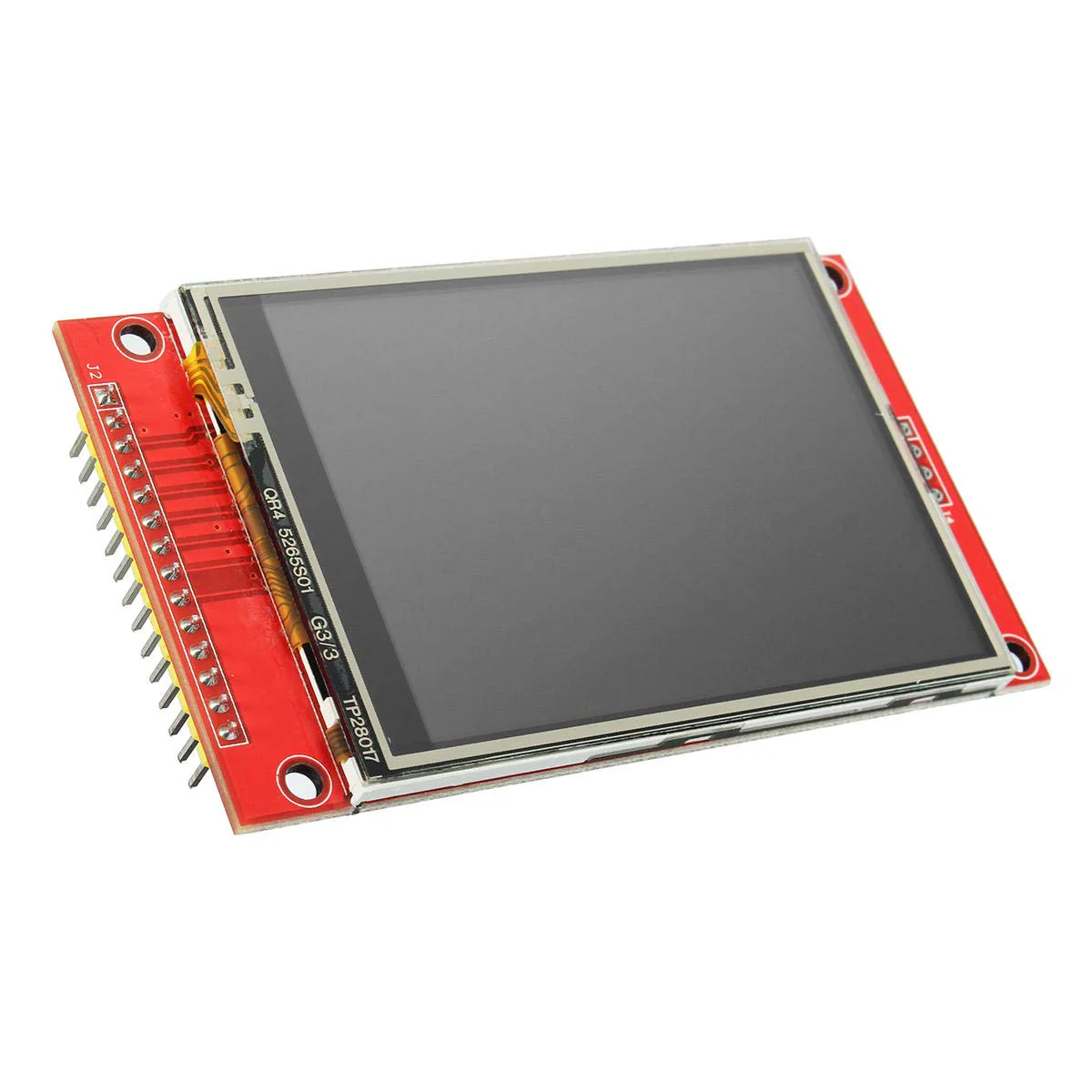

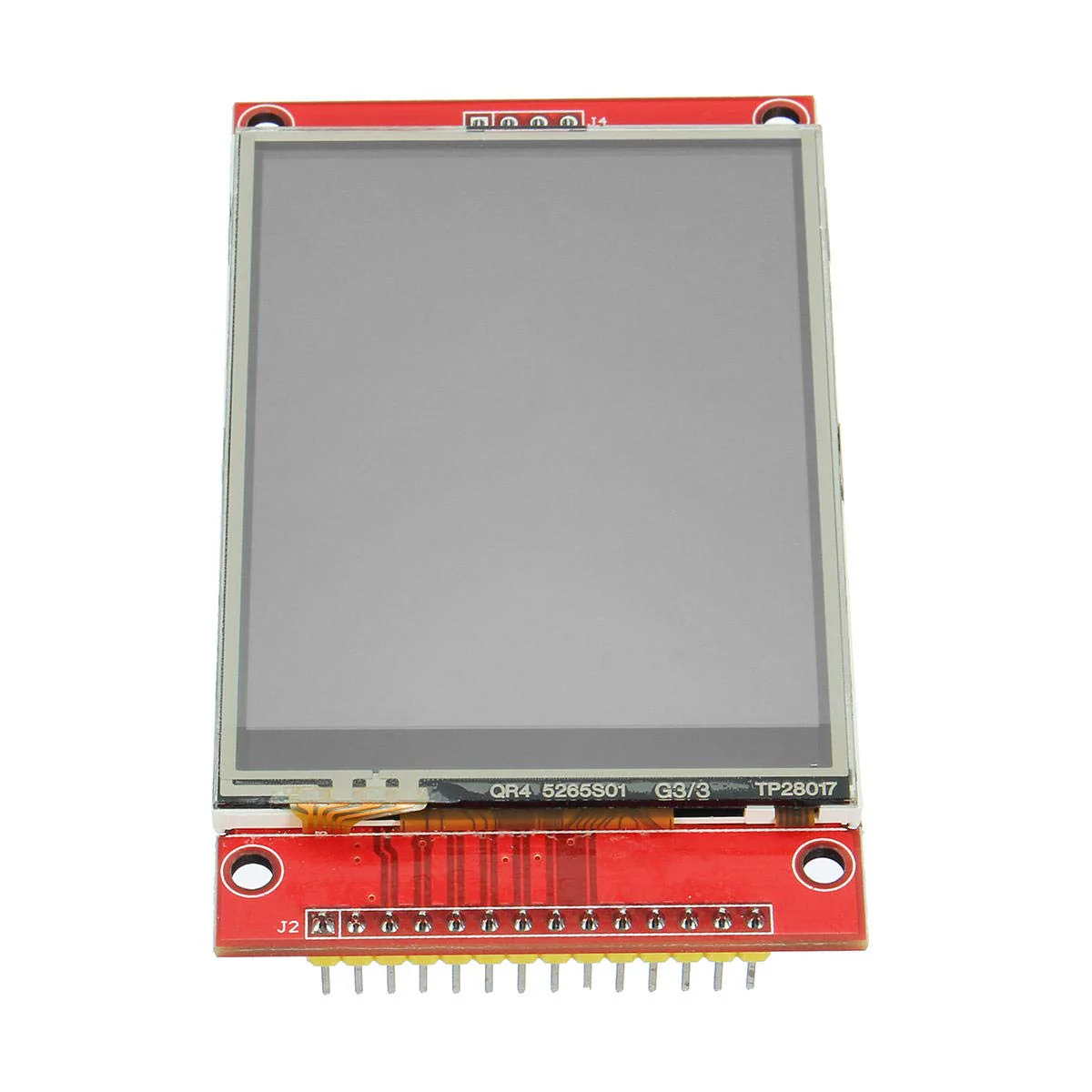

Fasizi 2.8 Inch ILI9341 240x320 SPI TFT LCD Display Touch Panel SPI Serial Port Module
Specifications: Type: Touch Panel Screen: 2.8" SPI Serial Display area: 46(W) x 65(H) mm Size: 86 x 50 mm. Driver element: a-Si TFT Active Matrix. Pixel arrangement: vertical RGB stripes. Driver IC: ILI9341. Backlight: white LED. Viewing Direction: 6 o'clock Color Depth:262K/65K Resolution (dots): 240 RGB x 320 dots. 5V compatible, use with 3.3V or 5V logic. Requires at least 4 iOs from your MCU With printed circuit board (including power supply IC, SD), compatible with 5110 interface Package includes: 1 x 2.8 inch TFT LCD display touch panel module. 1 x stylus pen.
Product Features
- Type: Touch Panel
- Screen: 2.8" SPI Serial
- Display area: 46 (W) x 65 (H) mm
- Size: 86 x 50 mm
- Driver element: a-Si TFT Active Matrix
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Fasizi 2.8 Inch ILI9341 240x320 SPI TFT LCD Display Touch Panel SPI Serial Port Module
Specifications: Type: Touch Panel Screen: 2.8" SPI Serial Display area: 46(W) x 65(H) mm Size: 86 x 50 mm. Driver element: a-Si TFT Active Matrix. Pixel arrangement: vertical RGB stripes. Driver IC: ILI9341. Backlight: white LED. Viewing Direction: 6 o'clock Color Depth:262K/65K Resolution (dots): 240 RGB x 320 dots. 5V compatible, use with 3.3V or 5V logic. Requires at least 4 iOs from your MCU With printed circuit board (including power supply IC, SD), compatible with 5110 interface Package includes: 1 x 2.8 inch TFT LCD display touch panel module. 1 x stylus pen.
Product Features
- Type: Touch Panel
- Screen: 2.8" SPI Serial
- Display area: 46 (W) x 65 (H) mm
- Size: 86 x 50 mm
- Driver element: a-Si TFT Active Matrix
