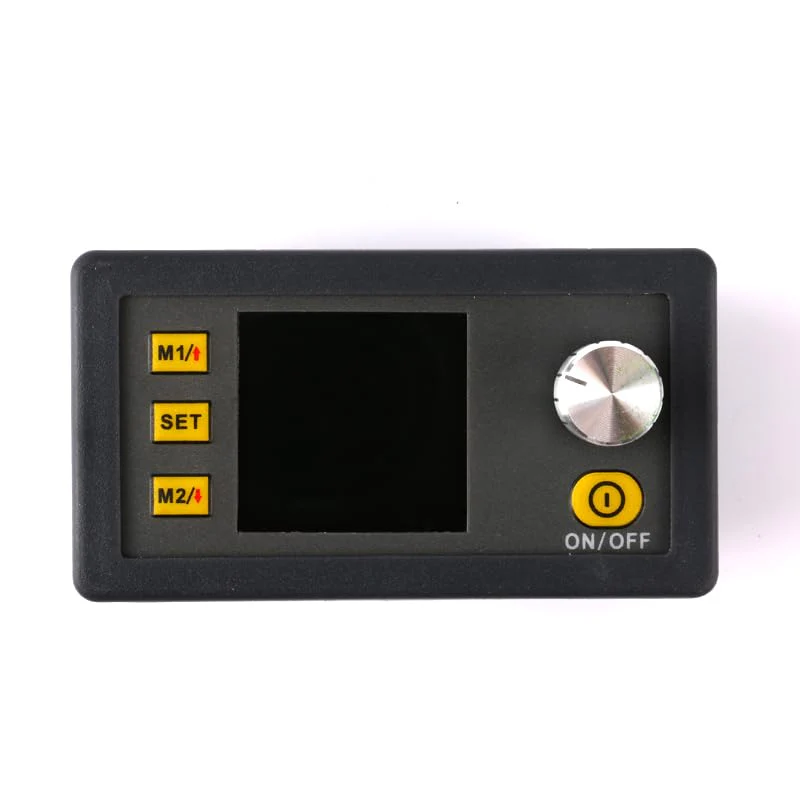

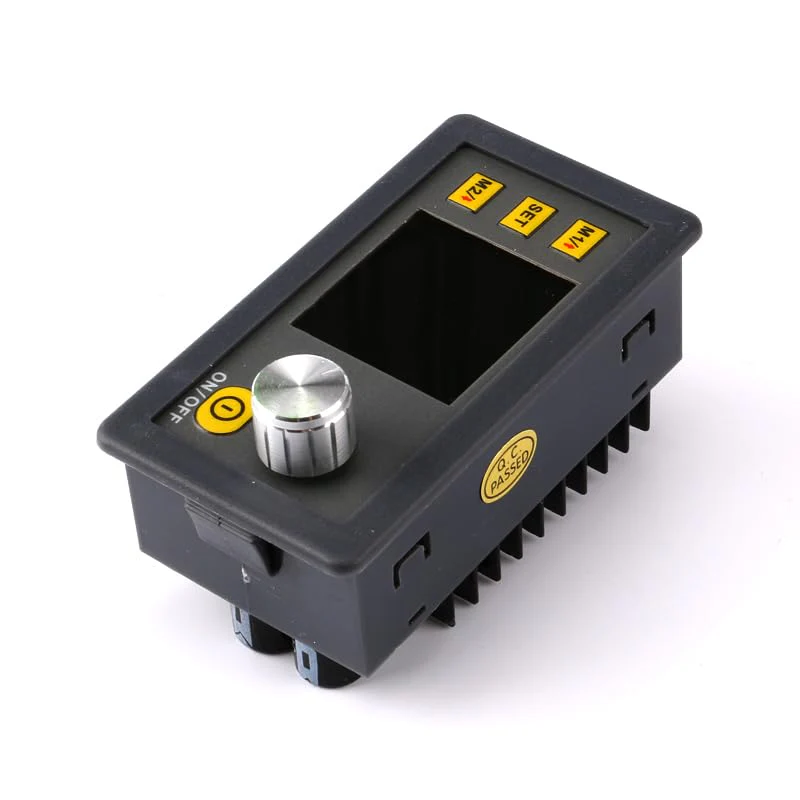

DP50V5A Digital Adjustable CNC DC Stabilized Power Supply Step-Down Module 0-50V Voltage Regulator Buck Power Converter with LCD Display

DP50V5A Digital Adjustable CNC DC Stabilized Power Supply Step-Down Module 0-50V Voltage Regulator Buck Power Converter with LCD Display

Product parameters Product model: DP50V5A Output power range: 0-250W Output voltage range: 0-50.00V Output current range: 0-5.000A [Note] It is necessary to ensure that the input power supply voltage is more than 1.1 times the output voltage. Product weight: approximately 78 grams External dimensions: 79mmX43mm X48mm Opening size: 71mmX39mm Output voltage setting and reading resolution: 0.01V Output current setting and reading resolution: 0.001A Output voltage measurement accuracy: ± (0.5%+1 word) Output current measurement accuracy: ± (0.5%+2 words)

Product Features

• This CNC power supply integrates analog adjustment and digital control, with an adjustable output voltage of 0-50.00V, a step of 0.01V, an adjustable output current of 0-5.00A, and a step of 0.001A.
• The product comes with a power-off preset value storage function, which can store 10 sets of preset values and quickly retrieve two sets of preset values Equipped with LCD display and voltage and current meter function, the LCD allows for easy viewing of preset voltage, preset current, output voltage, output current, output power, input voltage, etc.
• The output status prompt area can easily indicate whether the current output is turned on/off, the constant voltage/current output status, whether the output is normal, whether the button is locked, and the current data group being called.
• In the data setting interface, adjustments can also be made to overvoltage values, overcurrent values, overpower data sets, LCD brightness, etc.
• This product has a compact size, advanced functions, good visual effects, strong operability, and high accuracy. It can be used independently or embedded into devices, with a wide range of applications.
