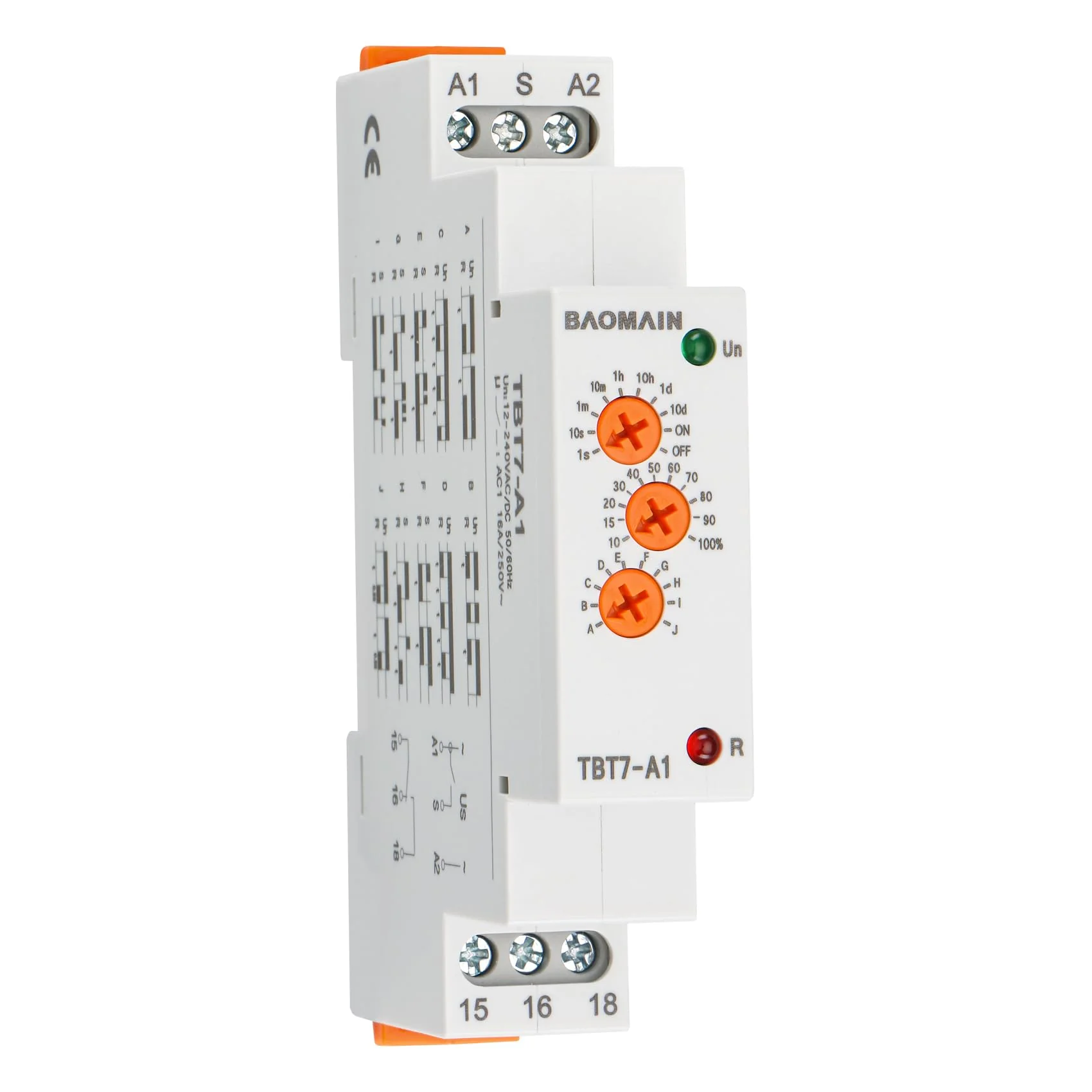

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC)
HomeStore

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC)

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC)

$84.28
Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC)—
$84.28

The Story

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC)

Product Features

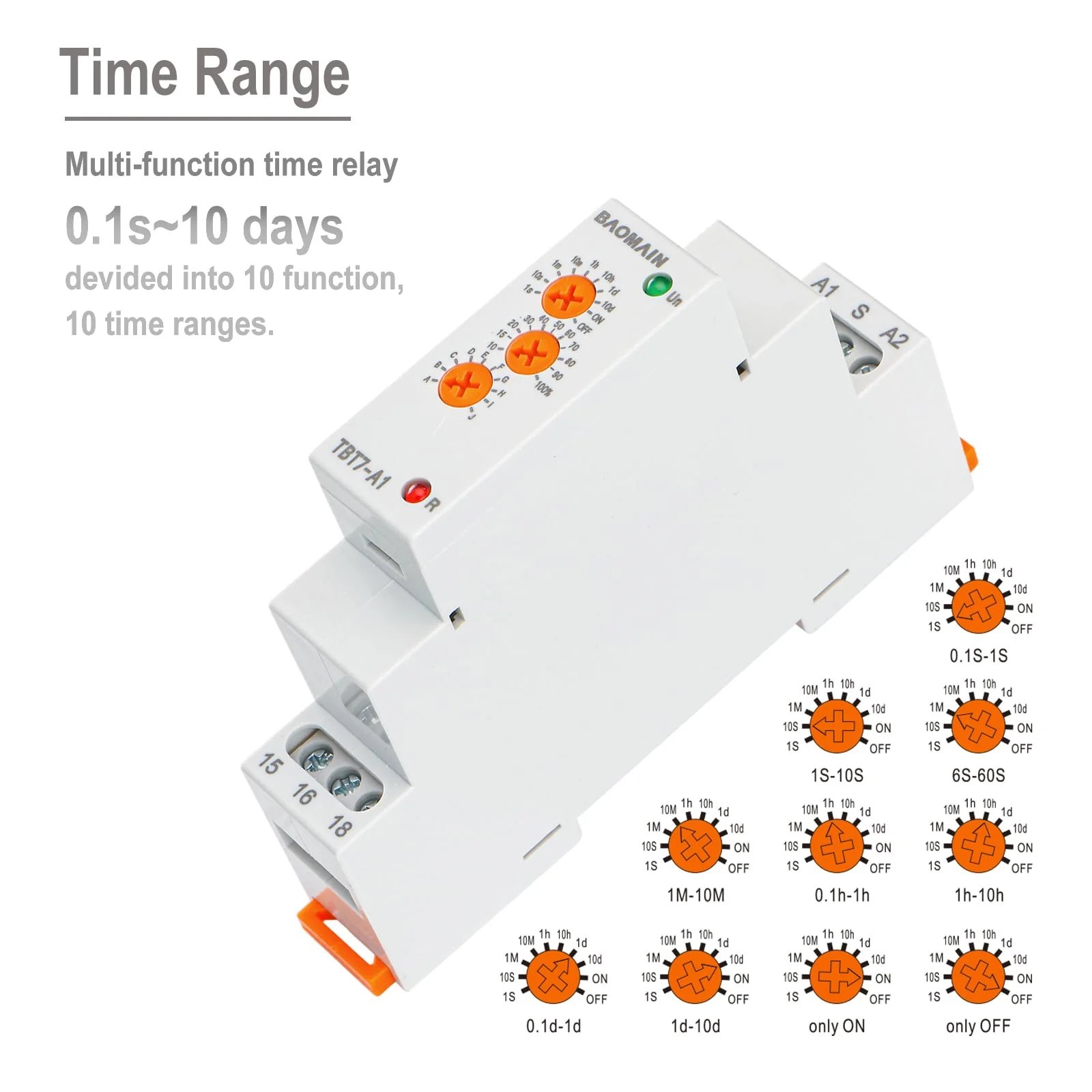

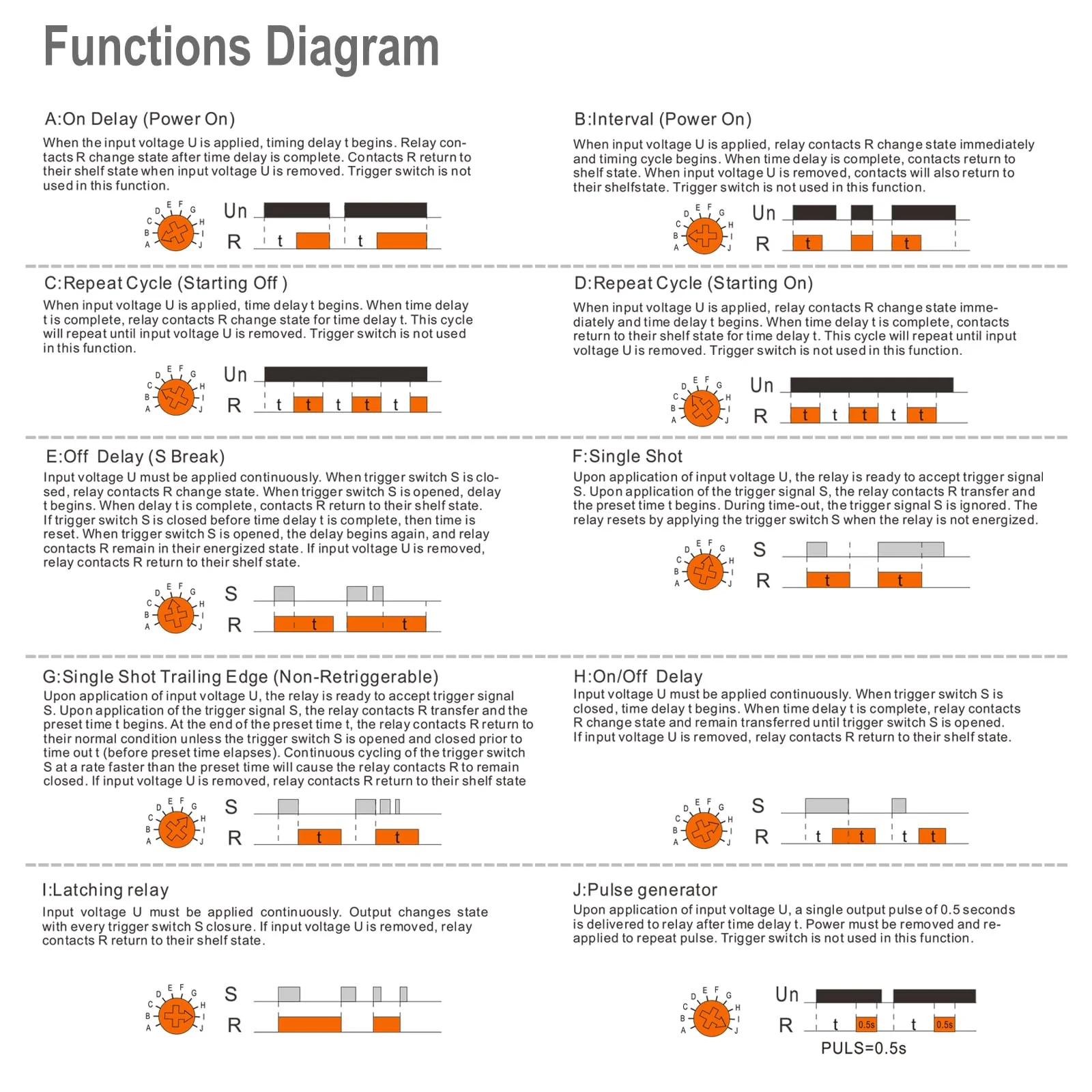

  • Time Range: 0.1s-10days,ON,OFF; Function: A,B,C,D,E,F,G,H,I,J (10 functions,10 time ranges)
  • Voltage Range: AC/DC12V-240V,50-60Hz
  • Power Input:AC max.6VA/1.3W; Bueden: AC0.09-3VA/DC0.05-1.7W

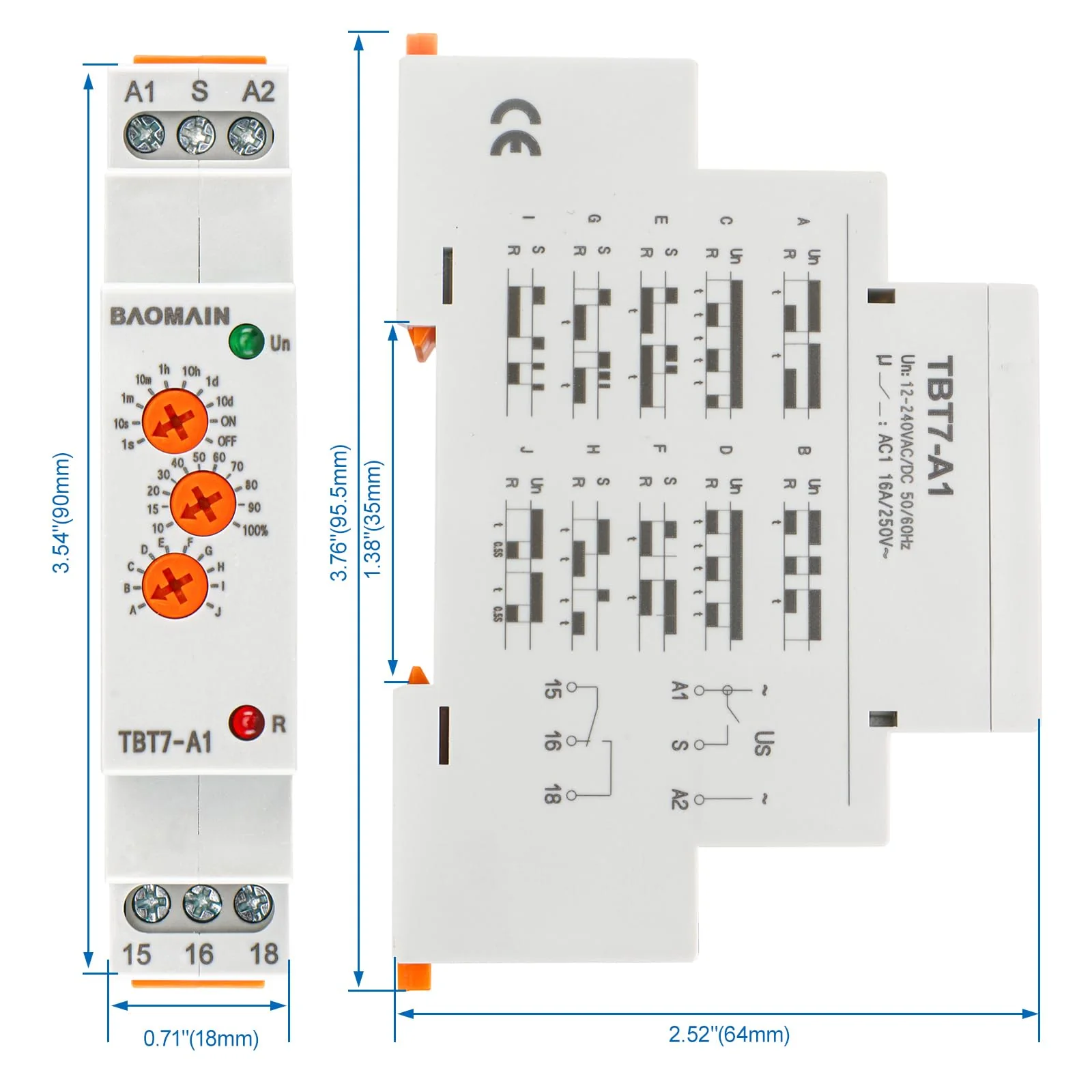

  • Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH);

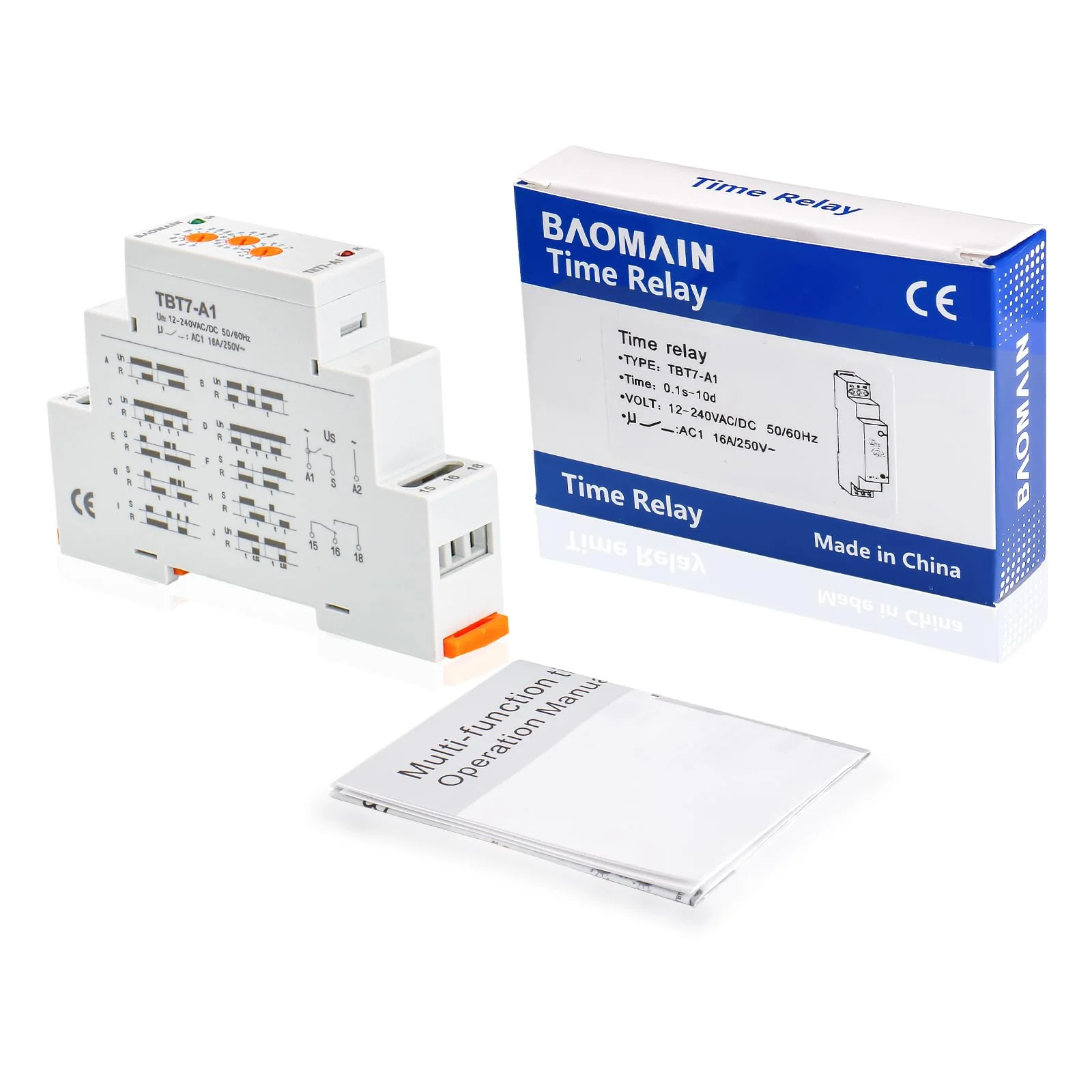

  • Weight: 70g; Package Includes: 1 x Time Relay, Instruction
Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC) - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC) - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC) - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC) - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC) - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Baomain Multi-Function Time Relay, 16A SPDT 10-Functions, DIN Rail Mounting Timer Relay TBT7-A1 (1-SPDT, 12-240VAC/DC)

Product Features

  • Time Range: 0.1s-10days,ON,OFF; Function: A,B,C,D,E,F,G,H,I,J (10 functions,10 time ranges)
  • Voltage Range: AC/DC12V-240V,50-60Hz
  • Power Input:AC max.6VA/1.3W; Bueden: AC0.09-3VA/DC0.05-1.7W
  • Size: 94 x 18 x 64 mm / 3.7'' x 0.70'' x 2.52'' (LxWxH);
  • Weight: 70g; Package Includes: 1 x Time Relay, Instruction
