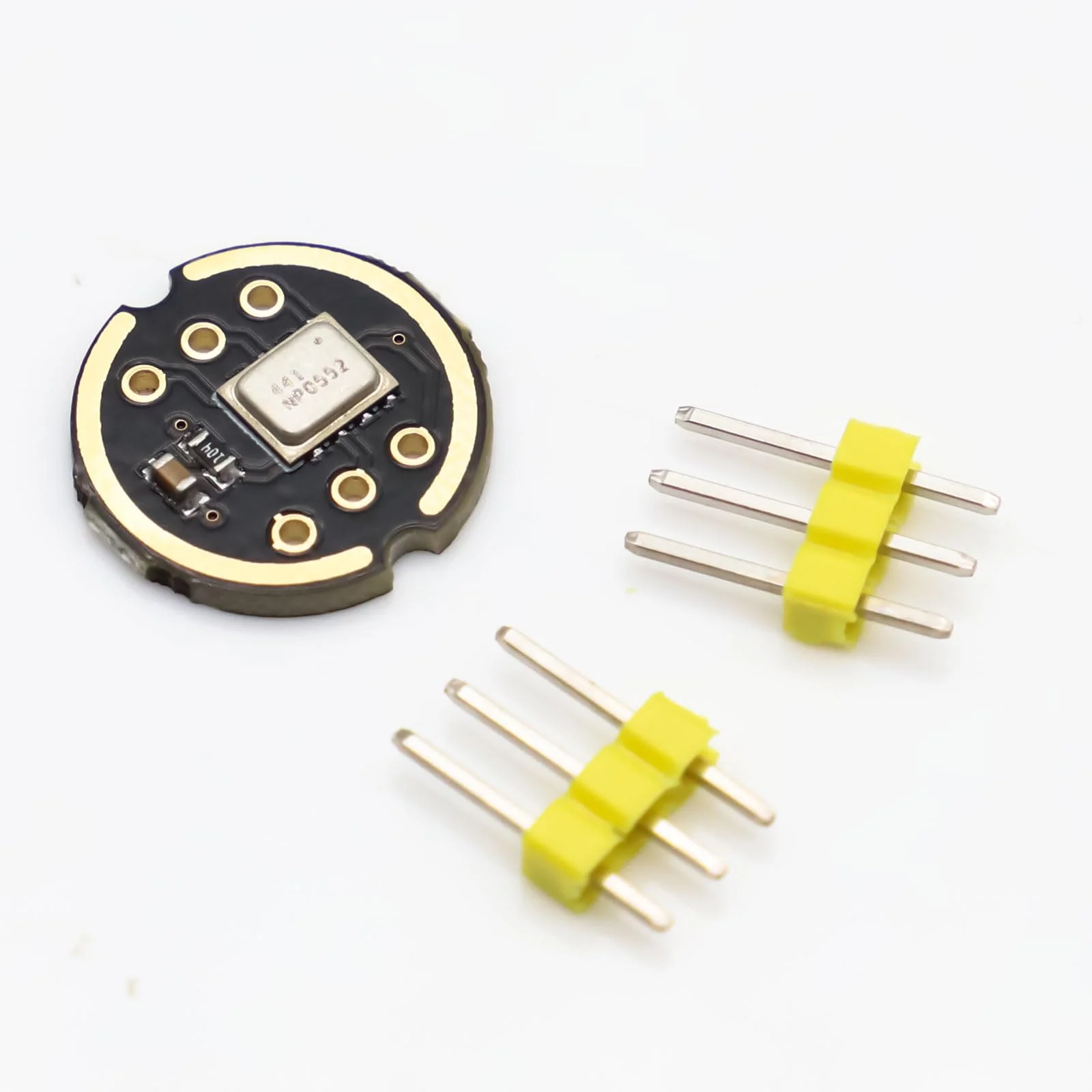

APKLVSR Pack of 5 Omnidirectional Microphone Module I2S Interface, High Precision Low Performance for ESP

APKLVSR Pack of 5 Omnidirectional Microphone Module I2S Interface, High Precision Low Performance for ESP

Product Features: 1. Digital I/S interface with high-precision 24-bit data 2. The high SNR is 61 DBA 3. High Sensitivity - 26dBfs 4. Stable frequency response from 60Hz to 15kHz 5. Low power consumption: low power consumption 1.4 ma 6. High PSR: -75 dBfs Interface definition: SCK: serial data clock of the I 2 s interface. Ws: Selection of serial data words for I? S interface L/R: left/right channel selection At low level, the microphone gives the signal in the left channel of the I? off. S-Frame At high setting, the microphone emits the signal in the right channel SD: serial data output from I? S interface VCC: input power, 1.8V to 3.3V GND: electricity mass. This product provides a tutorial for using the esp module with I2S function Connect with our esp development board: ESP Development Board SCK >> GPIO14 SD >> GPIO32 GPIO15. L/R >> GND Dimensions: VDD >> VDD3.3 inches

Product Features

• The module is a powerful, energy-saving, omnidirectional microphone with digital output and a lower port.
• The module has a high signal to noise ratio and is an excellent choice for near-field applications. The module features a flat broadband frequency response that results in a high resolution of natural sound.
• The I2S interface allows the module to be connected directly to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system.
• The module is available in a thin surface mount case measuring 4.72 x 3.76 x 1mm. The style is lightweight, classic and easy to carry. Can be used as external microphone and speaker accessory for computers.
