APKLVSR DC-DC 600W 10A Boost Converter Converter, 12-60V to 12-80V 600W DC-DC Converter Power Supply Step-up Converter Module Power Supply

APKLVSR DC-DC 600W 10A Boost Converter Converter, 12-60V to 12-80V 600W DC-DC Converter Power Supply Step-up Converter Module Power Supply

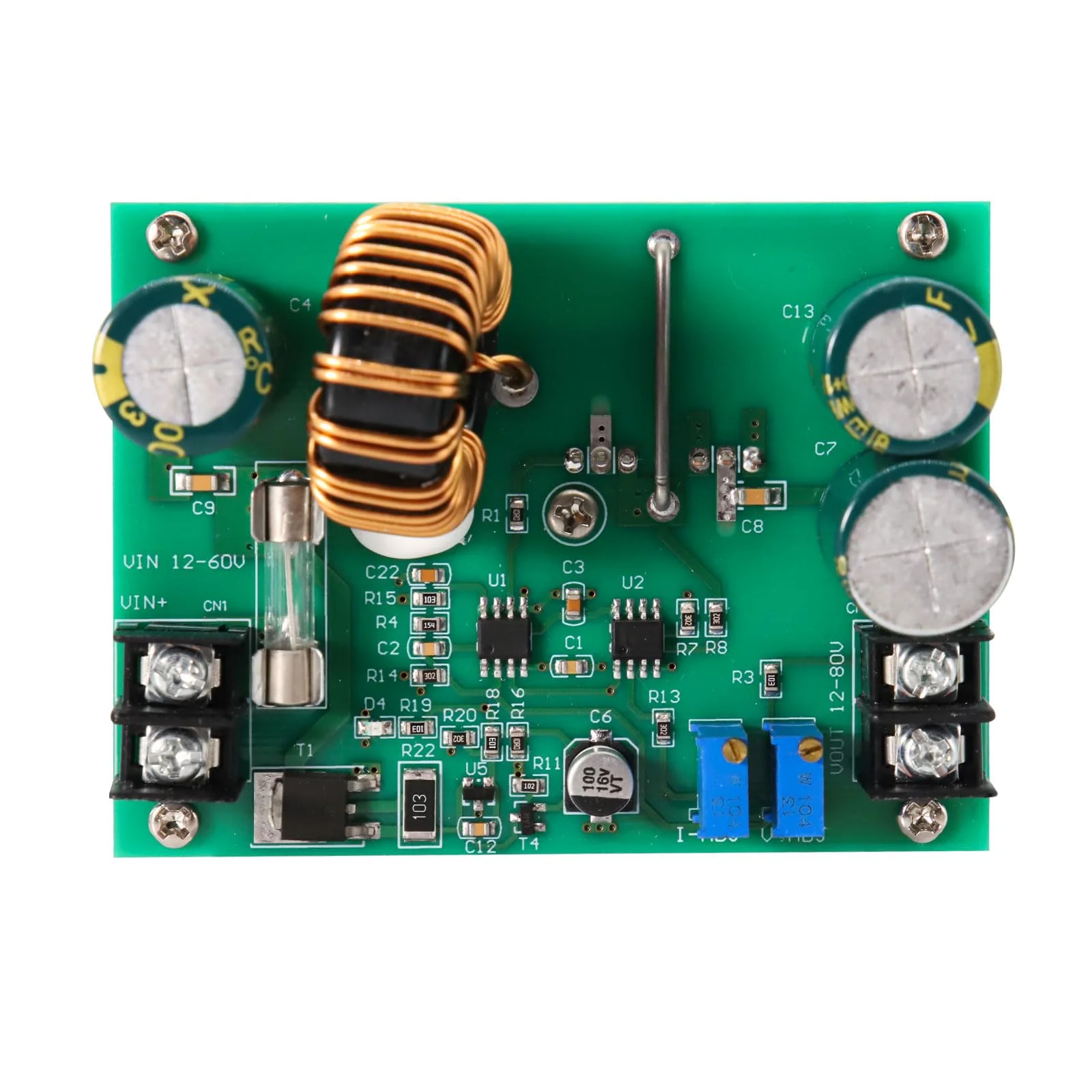

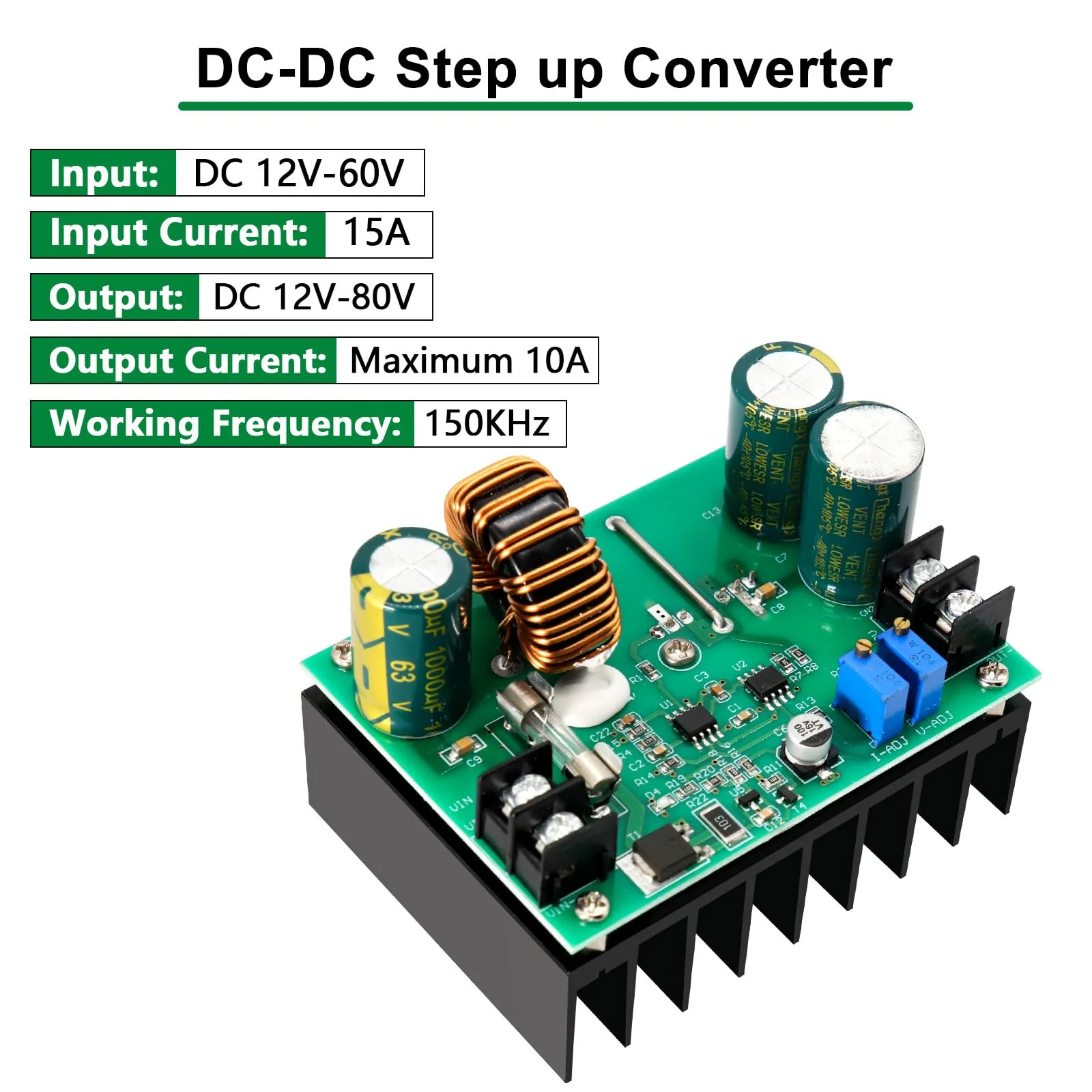

600W 10A DC-DC Boost Converter Converter Power Supply Step-up Converter Module Specification: Input voltage: 12V-60V. Input current: input current: 15 A. Output voltage: 12V-80V infinitely adjustable. Output current: maximum output current 10A (adjustable). Output power: active power P = input voltage V x 10 A. Conversion efficiency: up to 95% (input voltage and current; output voltage and current affect the conversion efficiency) Short circuit protection: fuse Module size: 85 x 70 x 62 mm. Operating frequency: 150 kHz Working temperature: -40 ~ +85 ° (Please strengthen heat dissipation if the ambient temperature is too high). Static working current: 15mA (measured when 12V rise to 20V; the higher the output voltage, the higher the static current increases) Over current protection: Yes (input exceeds 17A, the output voltage is automatically reduced and there is a certain error range.) Input reverse polarity protection: none. If you need more power, you can use two modules in parallel. For example, if the output is 15A, you can use two modules in parallel to adjust the current of each module to 8A. The inductive magnetic ring has a 27 mm magnetic ring made of iron silicon aluminium, a 1 mm double wire inductor, a high-quality filter capacitor, an input with a 1000uF63V electrolytic capacitor, an output with two 470uF100V electrolytic capacitors, better output power quality and better on-board power supply. The power supply is switchswitchswitchindicator light as well as the potentiometer for voltage and current adjustment make the output more comfortable. The output voltage and output current can be adjusted at any time. The input and output adopts 8500 terminal blocks. Box contents: 1 x 600 W step up converter

Product Features

• DC Boost Converter: 600 W DC-DC converter 12 V, wide voltage input: 12 V ~ 60 V, 12 V ~ 80 V adjustable wide voltage output; output current can be adjusted; extremely low input and output pressure difference. If the current is >18A, please strengthen the heat dissipation
• With overcurrent and short circuit protection: step up converter double short circuit protection (input 15 A fuse); with output return protection, no return diode needs to be added when charging. Note: There is no backflow protection. If you need this, please switch one diode in series with the input
• DC to DC boost converter: the 600 W step up converter module has a 1 mm dual wire winding inductor, a good filter capacitor and 8500 wiring clamps, is durable and has a longer service life.
• High efficiency: the step up converter of the step-up converter can be up to 95%. Please pay attention to voltage and current when using as the input voltage and current are the same. Output voltage and current affect the conversion efficiency. If you need more power, you can use two modules in parallel.
• ApplicationModules commonly used for cars, laptops, PDAs and other digital products. If you have any problems, please contact us. We will try to solve your problem as soon as possible.
