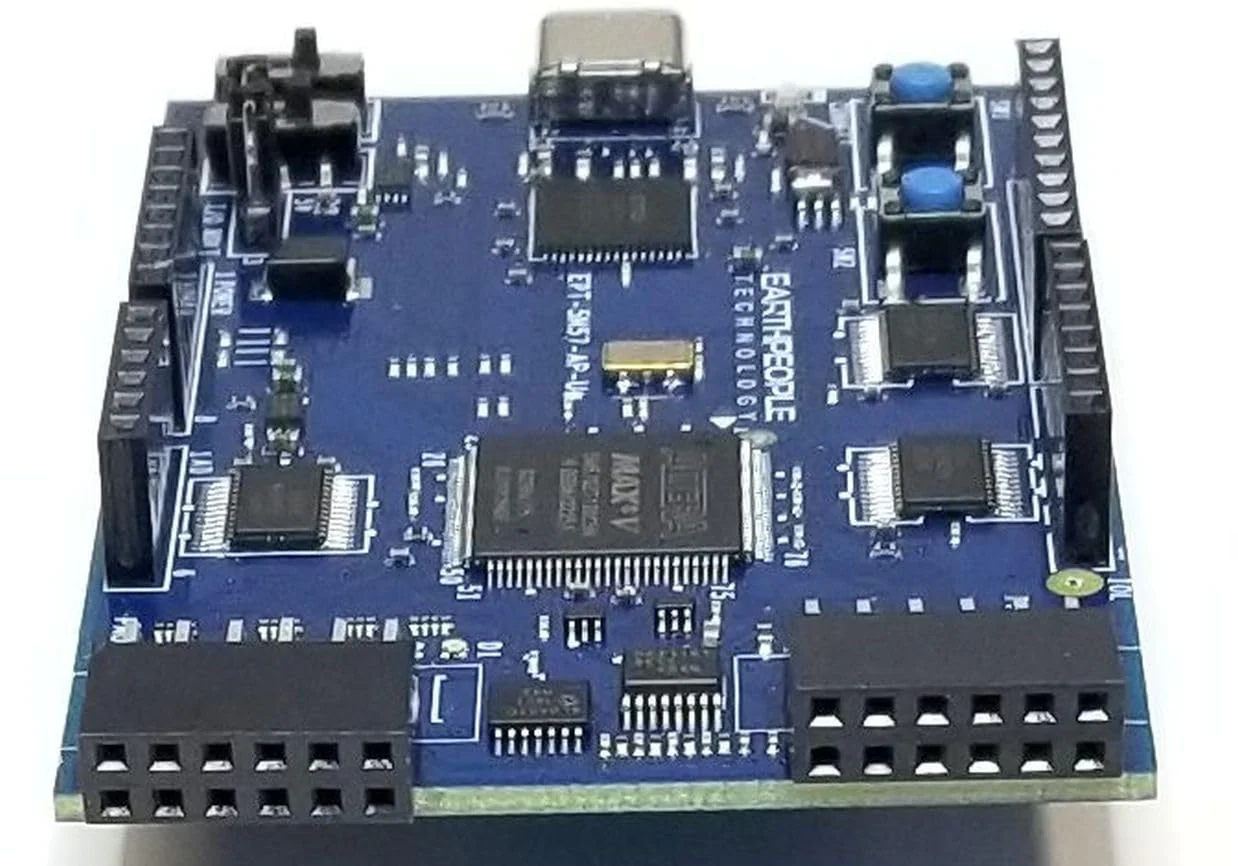

The EPT USB-CPLD development system provides a flexible learning platform by combining a powerful Complex Programmable Logic Device with High Speed USB. It is designed to provide an innovative method of developing and debugging programmable logic code.It provides a high speed data transfer mechanism between any microcontroller (or any digital device) and a host PC.The EPT USB- CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Altera’s Quartus II software.The user will develop the code in the Quartus environment on a Windows Personal Computer. The programmable logic code is then loaded into the CPLD using only the Quartus Programmer software and a standard USB cable. The programmer hardware is built in to the UnoProLogic. The ActiveHost API provides a highly configurable communications interface between CPLD and host PC.It connects transparently to the Active Transfer Library running inthe CPLD code.Altera 5M570 CPLD24 Inputs/Outputs compatible with 5 VotlsFour Green LEDsTwo push button switches4 Channel ADC with 300KS/s

Product Features

• Altera 5M570 CPLD with 440 MacroCells. Full Open Source software allows the user to create unique projects for specific applications. Detailed user manual and data sheet describes the board.
• The MAX V CPLD is a great chip to learn programmable logic with. The MAX V is a complete chip programmed using JTAG. The chip can be re-programmed thousands of times making it perfect for development projects. The UnoProLogic board comes complete with all regulators, oscillators and connectors to provide a complete development system for beginners.
• On Board Four Channel ADC with 300KB/sec Sample Rate. Inputs/Outputs: 24 -- 5 Volt tolerant. I/O's are protected with 74LVCH4245 8-Bit Bus transceivers. USB Interface: 480 Mbps data transfers. User code will transparently connect with the ActiveHost API running on the Windows API. All software is Open Source
• JTAG Programmer: The 5M570 is programmed by the FT2232H Chip Through the Quartus Software
• Complete Development Kit with tutorials and source code. Please visit the UnoLogic product page under the earthpeopletechnology website to access all schematics, user manual, data sheets and project files.
