$27.25
Original: $77.85
-65%ABB S201-C25 Circuit Breaker S200-1P 25 A-C 2CDS251001R0254—
$77.85
$27.25The Story

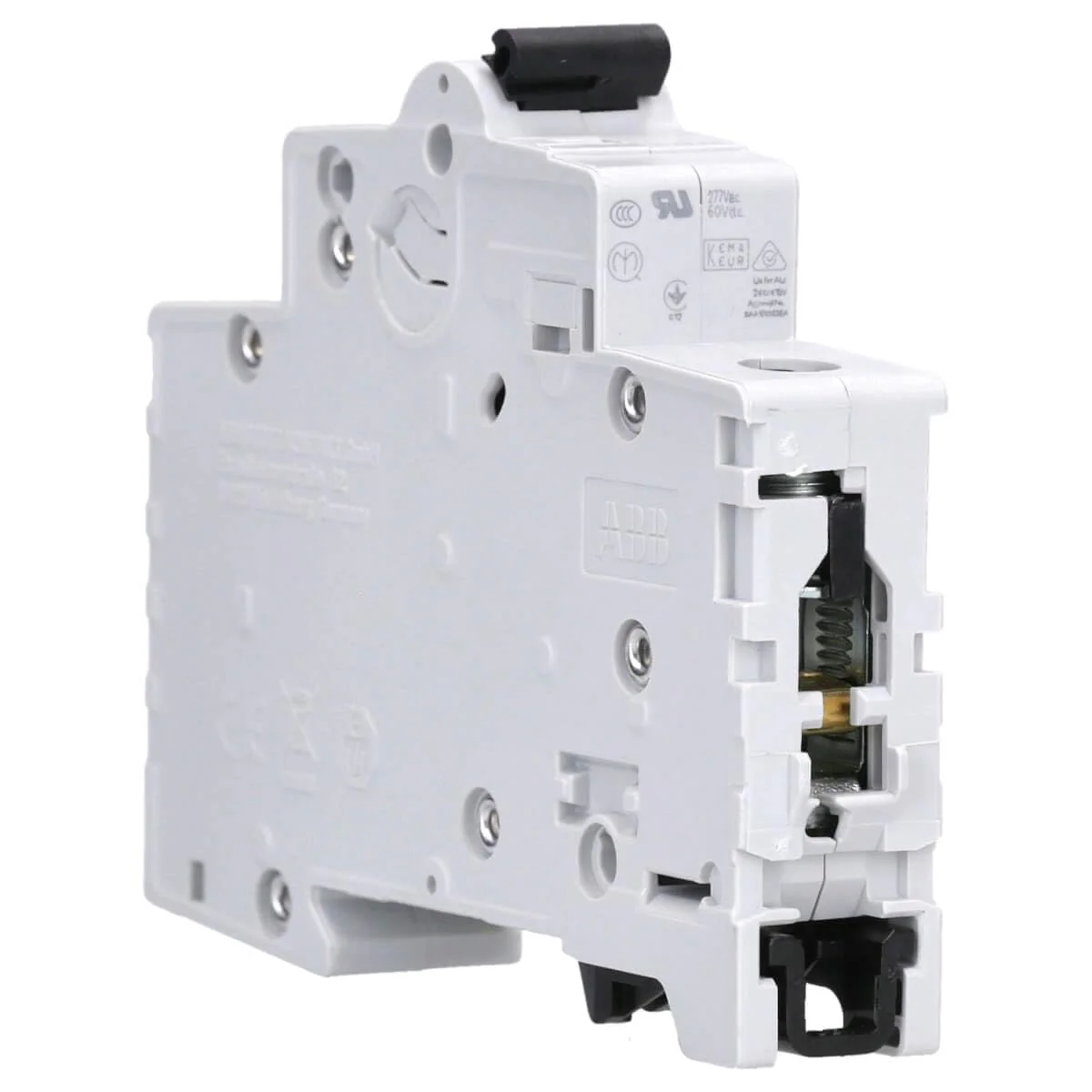

ABB S201-C25 Circuit Breaker S200-1P 25 A-C 2CDS251001R0254
ABB Electronic
Product Features
- Rated current and tripping characteristics: this switch is rated for a rated current of 25A and has a C characteristic that allows tripping at 5 to 10 times the rated current. This makes it particularly suitable for applications with moderate inrush currents, such as lighting systems or socket circuits.
- Rated voltage and switching capacity: The S201-C25 is designed for a rated voltage of 230 V AC and has a switching capacity of up to 6 kA, which qualifies it for use in typical low voltage networks.
- Disconnect Mechanisms The circuit breaker combines a thermal overload protection trigger with an electromagnetic trigger for short circuit protection to ensure comprehensive protection.
- Assembly and connection: The mounting is done on a standardized DIN rail (TH35), and the switch has screw terminals that can accommodate conductor cross sections from 0.75mm2 to 35mm2, allowing flexible installation.
- Standard conformity and protection type: The S201-C25 complies with the standards DIN VDE 0641-11 or IEC/EN 60898-1 and offers a protection class of IP20, which ensures basic protection against solid foreign bodies.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
ABB S201-C25 Circuit Breaker S200-1P 25 A-C 2CDS251001R0254
ABB Electronic
Product Features
- Rated current and tripping characteristics: this switch is rated for a rated current of 25A and has a C characteristic that allows tripping at 5 to 10 times the rated current. This makes it particularly suitable for applications with moderate inrush currents, such as lighting systems or socket circuits.
- Rated voltage and switching capacity: The S201-C25 is designed for a rated voltage of 230 V AC and has a switching capacity of up to 6 kA, which qualifies it for use in typical low voltage networks.
- Disconnect Mechanisms The circuit breaker combines a thermal overload protection trigger with an electromagnetic trigger for short circuit protection to ensure comprehensive protection.
- Assembly and connection: The mounting is done on a standardized DIN rail (TH35), and the switch has screw terminals that can accommodate conductor cross sections from 0.75mm2 to 35mm2, allowing flexible installation.
- Standard conformity and protection type: The S201-C25 complies with the standards DIN VDE 0641-11 or IEC/EN 60898-1 and offers a protection class of IP20, which ensures basic protection against solid foreign bodies.
