The Story
50mW Optical Fault Fault Finder Photometer Fiber Optic FTTH -70dBm to +6dBm Fiber Optic Tester with FC-LC-Adapter

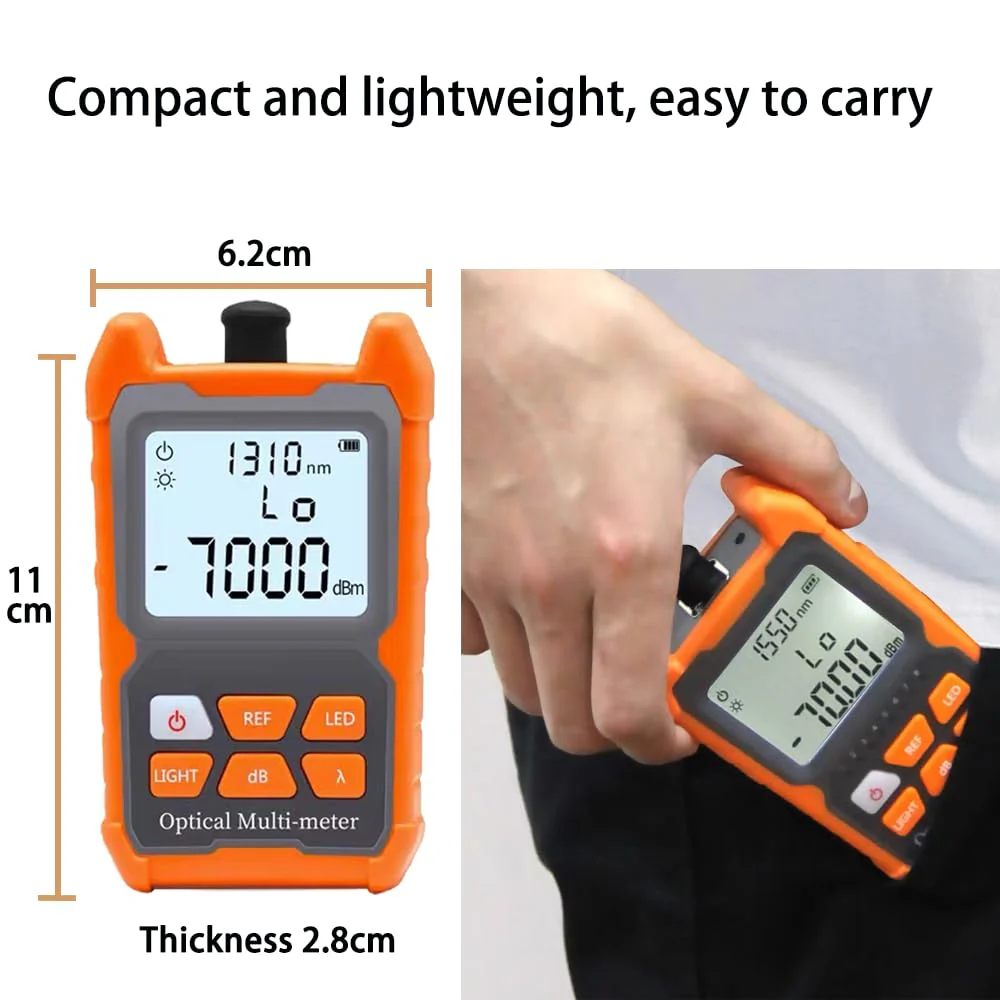

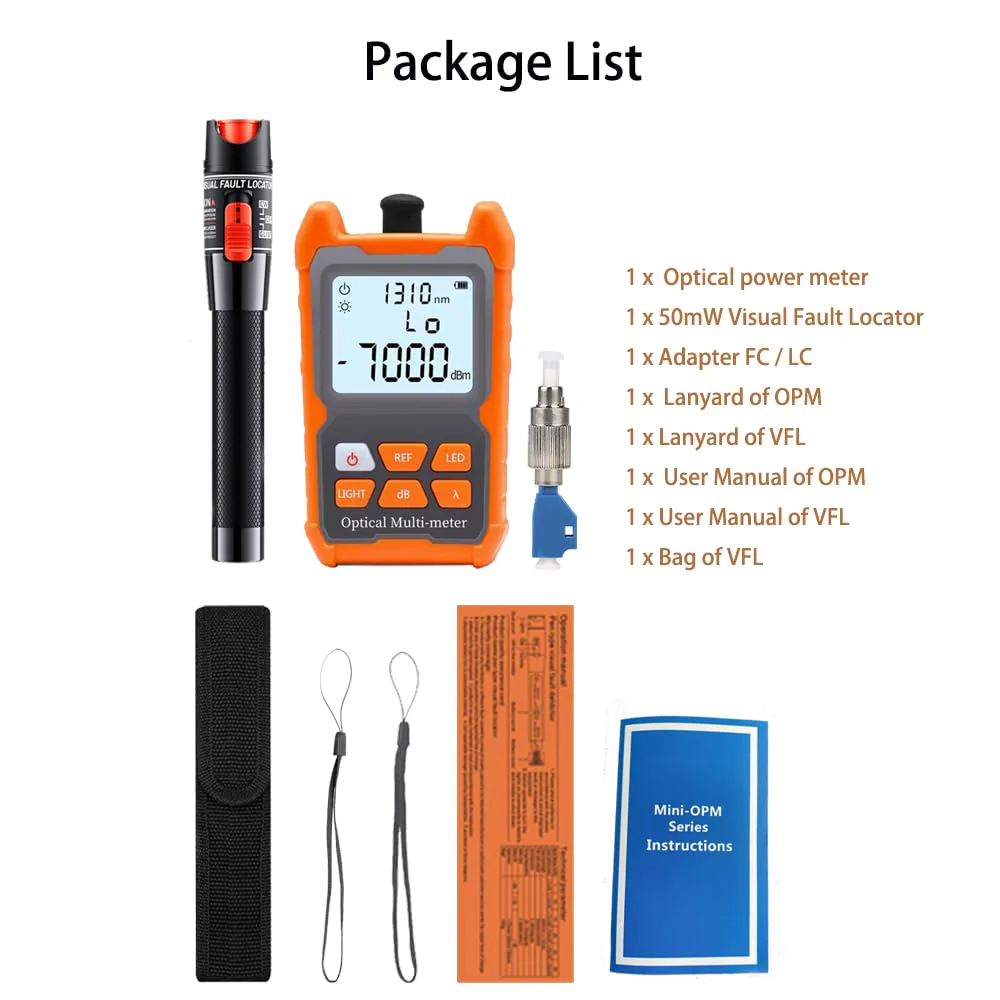

Fibreglass photometer. Wavelength Range: 800~1700 Connectors: FC/ST/SC Probe type: InGaAs Measuring range: -70~+6°C Uncertainties: 5% Standard wavelength (nm): /1310/1490/1550/1625/1650 Auto power off: 10 minutes Dimensions (mm): 110 x 62 x 28 Weight: 140g Power supply: Two No. 7 batteries (battery is not included). 50mW Fiber Optic Pen Optical output: >50mW Output Wavelength: 650nm + 10nm Fiber optic adapter: universal connector 2.5 mm. Operating temperature: 0 to 60 °C. Size: 17.5 x 2 x 2 cm. Weight: 120g Power supply: Two No. 5 batteries (battery is not included). Package includes: 1 x Fiber Optic Photometer -70dBm to +6dBm 1 x 50mW Visual Fault Finder 1 x FC/LC Adapter 1 x Pen Strap 1 x Fiberglass Photometer Lanyard 1 x Pen Bag 1 x Pen User Manual 1 x Fiber Optic Photometer Manual (The battery is not included).
Product Features

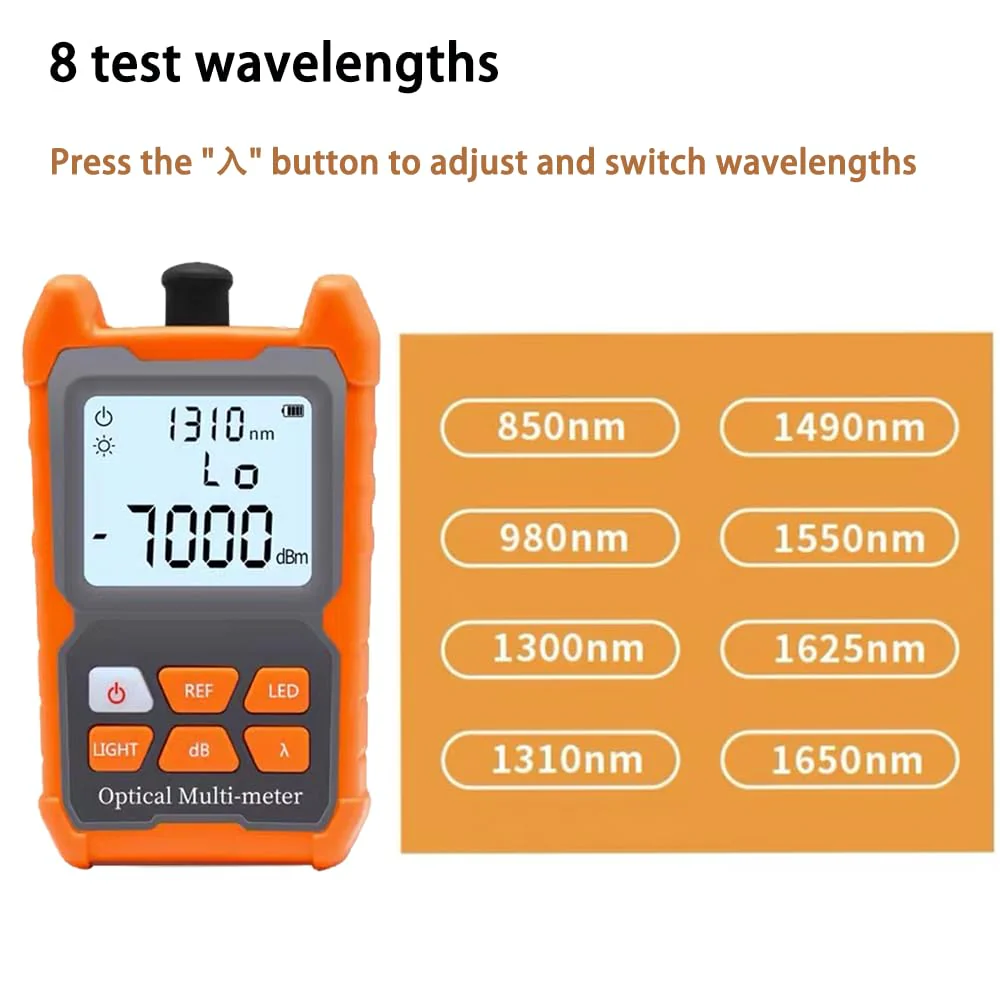

- Fiber optic power meter: fiber optic can measure 8 standard wavelengths 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm, test range: -70 dB ~ + 6 dBm.
- Fiber optic power meter: supports lighting, automatic shutdown, supports backlight selection, supports wavelength memory function, supports user calibration, supports the universal interface FC / SC / ST.
- Visual fault finder adopts the pen body made of aluminum, sturdy and corrosion resistant; imported head, its light concentration is strong and its low attenuation, can easily penetrate the glass fiber of 10~50 km.

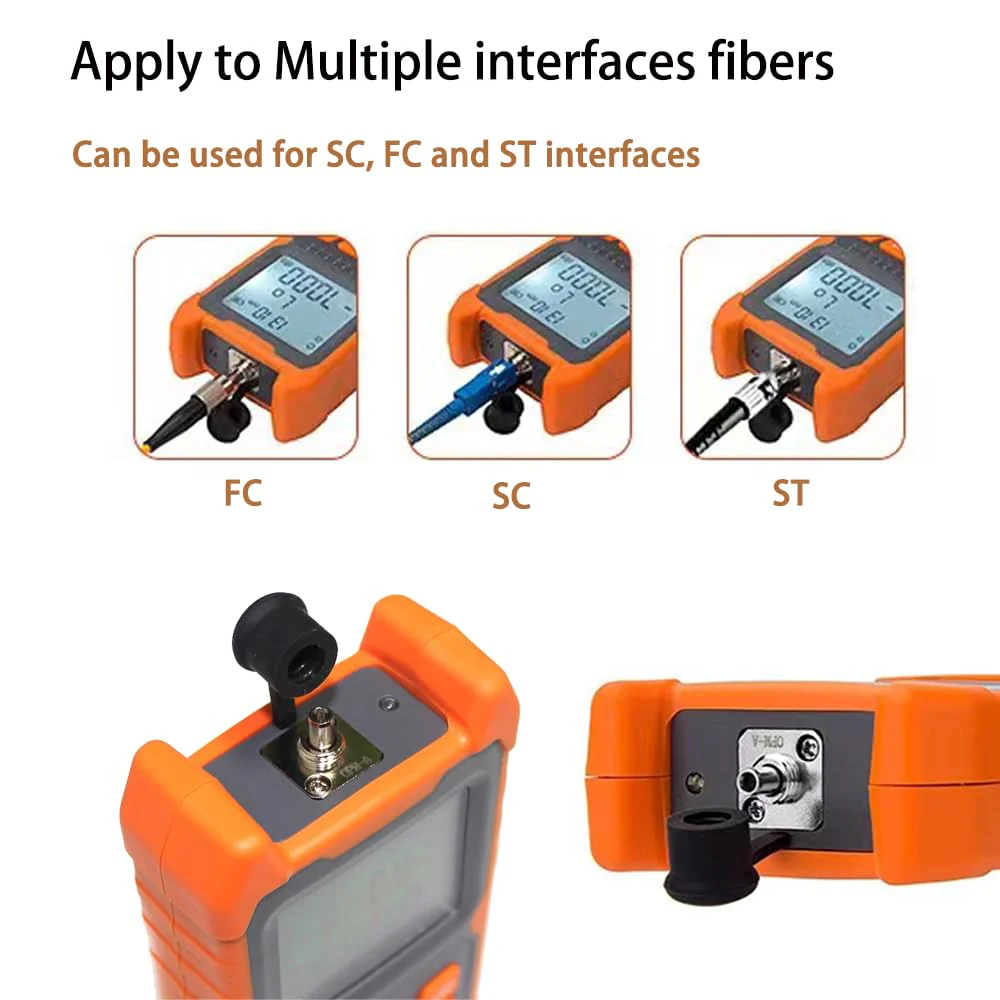

- 50mW Visual Fault Finder: The interface of the fiber optic tester belongs to the standard 2.5mm interface, can be connected to the SC / FC / ST fiber optic interface, if you want to connect the LC interface (1.25mm), you need to use the included FC to LC converter.
- Wide Application Widely used in the construction and maintenance of fiber optic cable, fiber optic communication, detection of fiber optic cable, fiber optic cable TV and other fields.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
50mW Optical Fault Fault Finder Photometer Fiber Optic FTTH -70dBm to +6dBm Fiber Optic Tester with FC-LC-Adapter
Fibreglass photometer. Wavelength Range: 800~1700 Connectors: FC/ST/SC Probe type: InGaAs Measuring range: -70~+6°C Uncertainties: 5% Standard wavelength (nm): /1310/1490/1550/1625/1650 Auto power off: 10 minutes Dimensions (mm): 110 x 62 x 28 Weight: 140g Power supply: Two No. 7 batteries (battery is not included). 50mW Fiber Optic Pen Optical output: >50mW Output Wavelength: 650nm + 10nm Fiber optic adapter: universal connector 2.5 mm. Operating temperature: 0 to 60 °C. Size: 17.5 x 2 x 2 cm. Weight: 120g Power supply: Two No. 5 batteries (battery is not included). Package includes: 1 x Fiber Optic Photometer -70dBm to +6dBm 1 x 50mW Visual Fault Finder 1 x FC/LC Adapter 1 x Pen Strap 1 x Fiberglass Photometer Lanyard 1 x Pen Bag 1 x Pen User Manual 1 x Fiber Optic Photometer Manual (The battery is not included).
Product Features
- Fiber optic power meter: fiber optic can measure 8 standard wavelengths 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650 nm, test range: -70 dB ~ + 6 dBm.
- Fiber optic power meter: supports lighting, automatic shutdown, supports backlight selection, supports wavelength memory function, supports user calibration, supports the universal interface FC / SC / ST.
- Visual fault finder adopts the pen body made of aluminum, sturdy and corrosion resistant; imported head, its light concentration is strong and its low attenuation, can easily penetrate the glass fiber of 10~50 km.
- 50mW Visual Fault Finder: The interface of the fiber optic tester belongs to the standard 2.5mm interface, can be connected to the SC / FC / ST fiber optic interface, if you want to connect the LC interface (1.25mm), you need to use the included FC to LC converter.
- Wide Application Widely used in the construction and maintenance of fiber optic cable, fiber optic communication, detection of fiber optic cable, fiber optic cable TV and other fields.
