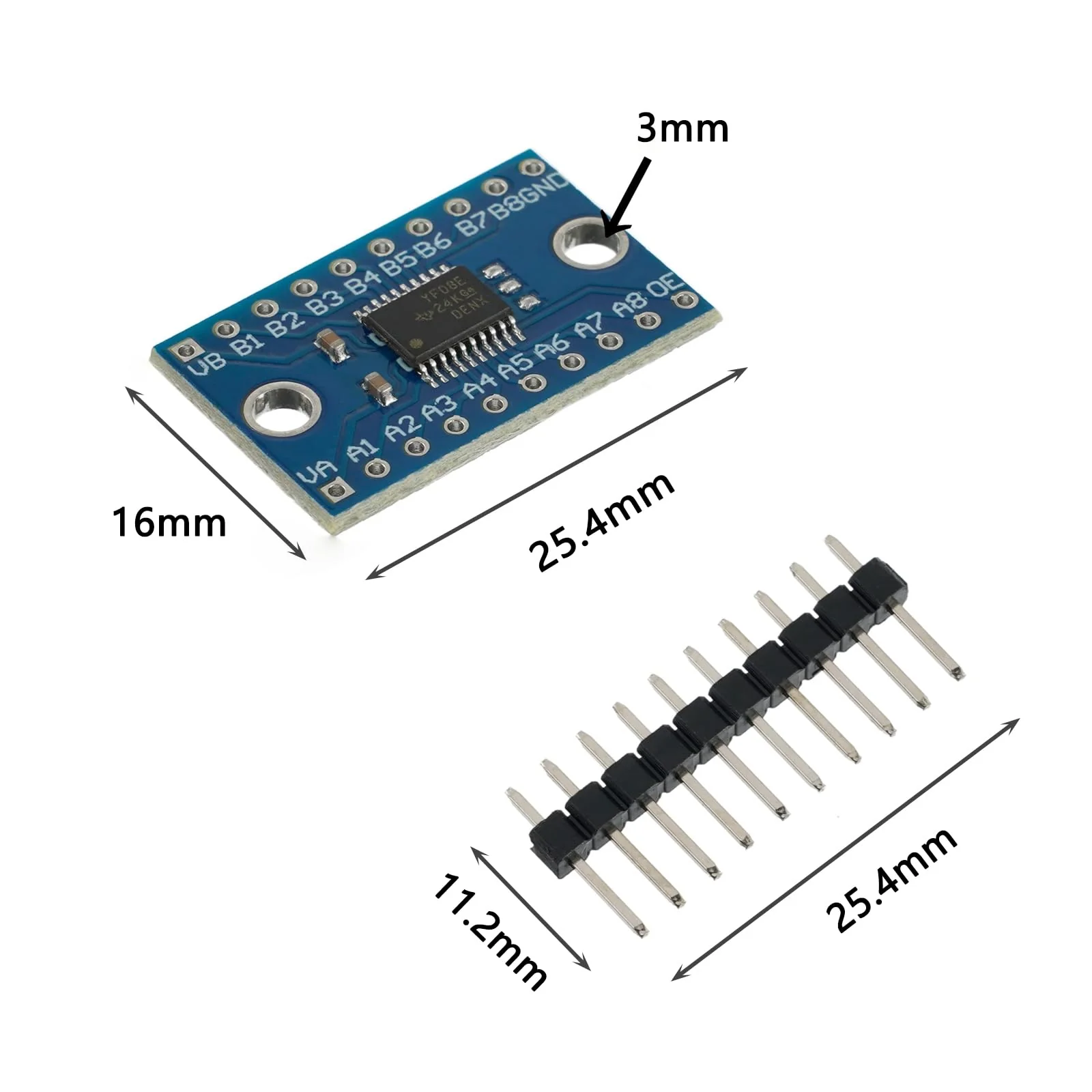

10PCS TXS0108E High Speed Full Duplex Switch 8-Way 8-Channel Logic Level Conversion Module Applied for IIC/SPI Serial Port Devices

10PCS TXS0108E High Speed Full Duplex Switch 8-Way 8-Channel Logic Level Conversion Module Applied for IIC/SPI Serial Port Devices

Note that OE IO can make effective at a high level. It is recommended to connect the IO port of the low voltage end

Product Features

• The high-speed full duplex 8-channel level conversion module provides bi-directional communication capability.
• The VCCA end supports voltage of 1.2V-3.6V, and the VCCB end supports voltage of 1.65V-5.5V. It can provide general level conversion capabilities such as 3.3-5V and 1.8-3.3V.
• It is mainly used for communication compatibility between 5V microcontrollers and 3.3V modules, 3.3V microcontrollers and 5V modules.
• The Level Conversion module supports communication between microcontrollers and SD cards and is compatible with serial iic and spi devices.
• Note that OE IO can make effective at a high level. It is recommended to connect the IO port of the low voltage end
